Engineering hydrology is the science of water resource engineering which deals with the study of occurrence, distribution, movement and the properties of water on the earth or beneath the earth surface or in the atmosphere.

Water resources engineers develop and execute plans for developing water systems that provide clean, safe water in an efficient way that is also good for the planet. They play a central role in civil and commercial construction projects that involve water distribution.

Civil Engineering Practice Test: Hydrology and Water Resources Engineering

Time left 00:00

25 Questions

1. Hydrograph is a graphical representation of

Ground water flowRain fallSurface run offDischarge flowing in the river

2. The net speed under which the turbine reaches its peak efficiency is called

Design speedRated speedOperating speedGross speed

3. Which of the following is a flexible outlet?

Gibb's outletSubmerged pipe outletNone of theseKennedy's gauge outlet

4. The polythene bottles are used for collecting rain water and. their capacities is

2 litres4 litresAll of these10 litres

5. Precipitation caused due to striking of air masses with a topographical feature, is called

None of theseOrographic precipitationConvective precipitationCyclonic precipitation

6. If the loss due to friction in pipes is 4 m, the total losses in strainer and bends may be taken as

0.20 m1.0 m0.5 m0.10 m

7. The sensitivity of a rigid module is

InfinityBetween zero and one1Zero

8. Hydrology helps in

Predicting maximum flowsForecasting the availability of quantity of water at reservoir siteDeciding the minimum reservoir capacityAll of these

9. Seepage through foundation in an earthen dam is controlled by providing

Chimney drainHorizontal blanketRock toeImpervious cut off

10. Select the incorrect statement.

Intensive irrigation should be avoided in areas susceptible to water loggingExtensive irrigation should be adopted in areas susceptible to water loggingAll of theseLift irrigation increases water logging

11. Precipitation caused by lifting of an air mass due to the pressure difference, is called

Cyclonic precipitationOrographic precipitationConvective precipitationNone of these

12. A river bend characterized by silting

Scouring on concave side and silting on convex sideSilting on convex sideScouring on concave sideScouring on convex side and on concave side

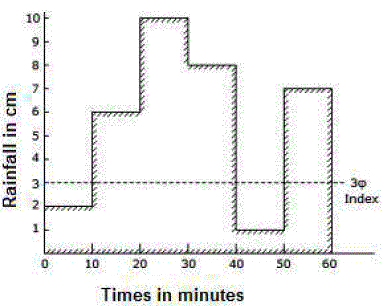

13. From the pattern of the rainfall shown in the below figure, the total precipitation is

5.5 cm5 cm4.5 cm4 cm

14. A unit hydro graph has one unit of

Rainfall durationTime base of direct runoffDischargeRainfall excess

15. Which of the following spillways is least suitable for an earthen dam?

Chute spillwayShaft spillwayOgee spillwaySide channel spillway

16. Pick up the correct statement from the following:

A confined bed of impervious material laid over an aquifer, is known as an aquicludeAll of theseThe top most water bearing strata having no aquifer, is known as non-artesian aquiferThe ordinary gravity wells which supply water from the top most water bearing strata, are called water table wells

17. Sharp crested weirs are generally used

For rivers carrying floating debrisFor streams carrying high sediment loadsFor small flowsFor large flows

18. Precipitation caused due to upward movement of warmer air as compared to surrounding air, is called

Convective precipitationNone of theseCyclonic precipitationOrographic precipitation

19. Pick up the correct equation from the following:

Run off = Surface run off / Ground water flowRun off = Surface run off x Ground water flowRun off = Surface run off + Ground water flowRun off = Surface run off - Ground water flow

20. Study the following statements. (i) Levees are constructed parallel to river flow (ii) Spurs are constructed parallel to river flow (iii) Levees are constructed transverse to river flow (iv) Spurs are constructed transverse to river flow
The correct answer is

(ii) and (iii)(i) and (ii)(iii) and (iv)(i) and (iv)

21. In a Sarda type fall, rectangular crest is used for discharge upto

6 cumecs20 cumecs14 cumecs10 cumecs

22. In case of non-availability of space due to topography, the most suitable spillway is

Shaft spillwayChute spillwayStraight drop spillwayOgee spillway

23. A runoff river plant is

A low head schemeA medium head schemeNone of theseA high head scheme

24. Shrouding is provided in

Strainer type tube wellsPerforated type tube wellsSlotted type tube wellsCavity type tube wells

25. Pick up the correct statement from the following:

When rainfall exceeds the interception rainfall, water reaches the ground and infiltration startsThe difference between the total rainfall and intercepted rainfall, is generally called ground rainfallRain which is intercepted by buildings, vegetations and other objects, is generally known as rainfall interceptionAll of these
