CompTIA Linux+ Certification: Configuring Network Connections

Key Topics:
Configuring Network Features
Command-Line Networking Tool
Basic Network Troubleshooting
Advanced Network Troubleshooting

Configuring Network Connections
Objective 1.5: Given a scenario, use the appropriate networking tools or configuration files
Objective 4.2: Given a scenario, analyze and troubleshoot network resource issues

These days it's almost a necessity to have your Linux system connected to some type of network. Whether it's because of the need to share files and printers on a local network or the need to connect to the Internet to download updates and security patches, most Linux systems have some type of network connection.
This guide looks at how to configure your Linux system to connect to a network as well as how to troubleshoot network connections if things go wrong. There are a few different methods for configuring network settings in Linux, and you'll need to know them all for the Linux+ exam. First, we'll cover the common locations for the configuration files in Linux distributions. Next, we'll examine the different tools you have at your disposal that help make configuring the network settings easier.

Configuring Network Features
There are five main pieces of information you need to configure in your Linux system to interact on a network:
The host address
The network subnet address
The default router (sometimes called gateway)
The system hostname
A DNS server address for resolving hostnames
There are three different ways to configure this information in Linux systems:
Manually editing network configuration files
Using a graphical tool included with your Linux distribution
Using command-line tools
The following sections walk through each of these methods.

Network Configuration Files
Every Linux distribution uses network configuration files to define the network settings required to communicate on the network. However, there's not a single standard configuration file that all distributions use.
Instead, different distributions use different configuration files to define the network settings.

TABLE:  Linux network configuration files

While each of the Linux distributions uses a different method of defining the network settings, they all have similar features. Most configuration files define each of the required network settings as separate values in the configuration file.


List: Sample Debian network static configuration settings
auto eth0
iface eth0 inet static
address 192.168.1.77
netmask 255.255.255.0
gateway 192.168.1.254
iface eth0 inet6 static
address 2003:aef0::23d1::0a10:00a1
netmask 64
gateway 2003:aef0::23d1::0a10:0001
The example shown in List 7.1 assigns both an IP and an IPv6 address to the wired network interface designated as eth0.

List: Sample Debian network DHCP configuration settings
iface eth0 inet dhcp
iface eth0 inet6 dhcp
If you just want to assign an IPv6, which uniquely identifies the device on the local network, but not retrieve an IPv6 address from a DHCP server, replace the inet6 line with this:
iface eth0 inet6 auto
The auto attribute tells Linux to assign the link local address, which allows the Linux system to communicate with any other IPv6 device on the local network but not a global address.

Note: /etc/netplan folder to define the network settings for each network interface installed on the system. By default, Netplan just passes the network settings off to the Network Manager tool, so you don't need to worry about how the Netplan configuration files are set.
For Red Hat–based systems, you'll need to define the network settings in multiple files, one for each network interface. The format of each file is:
ifcfg-interface
where interface is the device name for the network adapter, such as ifcfg-enp0s3.


List: Sample Rocky network interface configuration settings
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=dhcp
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=enp0s3
UUID=c8752366-3e1e-47e3-8162-c0435ec6d451
DEVICE=enp0s3
ONBOOT=yes
IPV6_PRIVACY=no
This configuration indicates that the workstation is using the DHCP process to automatically retrieve network information from a network server. For static IP addresses, you can set the IP address, default gateway, and subnet mask in the configuration file.
Most Linux distributions use the /etc/hostname file to store the local hostname of the system; however, some use /etc/HOSTNAME instead. You will also need to define a DNS server so that the system can use DNS hostnames. Fortunately, this is a standard that all Linux systems follow and is handled in the /etc/resolv.conf configuration file:
domain mydomain.com
search mytest.com
nameserver 192.168.1.1

The domain entry defines the domain name assigned to the network. By default the system will append this domain name to any hostnames you specify. The search entry defines any additional domains used to search for hostnames. The nameserver entry is where you specify the DNS server assigned to your network. Some networks can have more than one DNS server; just add multiple nameserver entries in the file.
Tip: hostnamectl command to view or change the hostname information. Also, to help speed up connections to commonly used hosts, you can manually enter their hostnames and IP addresses into the /etc/hosts file on your Linux system. The /etc/nsswitch.conf file defines whether the Linux system checks this file before or after using DNS to look up the hostname.

Graphical Tools
The Network Manager tool is a popular program used by many Linux distributions to provide a graphical interface for defining network connections. The Network Manager tool starts automatically at boot time and appears in the system tray area of the desktop as an icon.
If your system detects a wired network connection, the icon appears as a mini-network with blocks connected together. If your system detects a wireless network connection, the icon appears as an empty radio signal. When you click the icon, you'll see a list of the available wireless networks detected by the network card.

Click your access point to select it from the list. If your access point is encrypted, you'll be prompted to enter the password to gain access to the network.

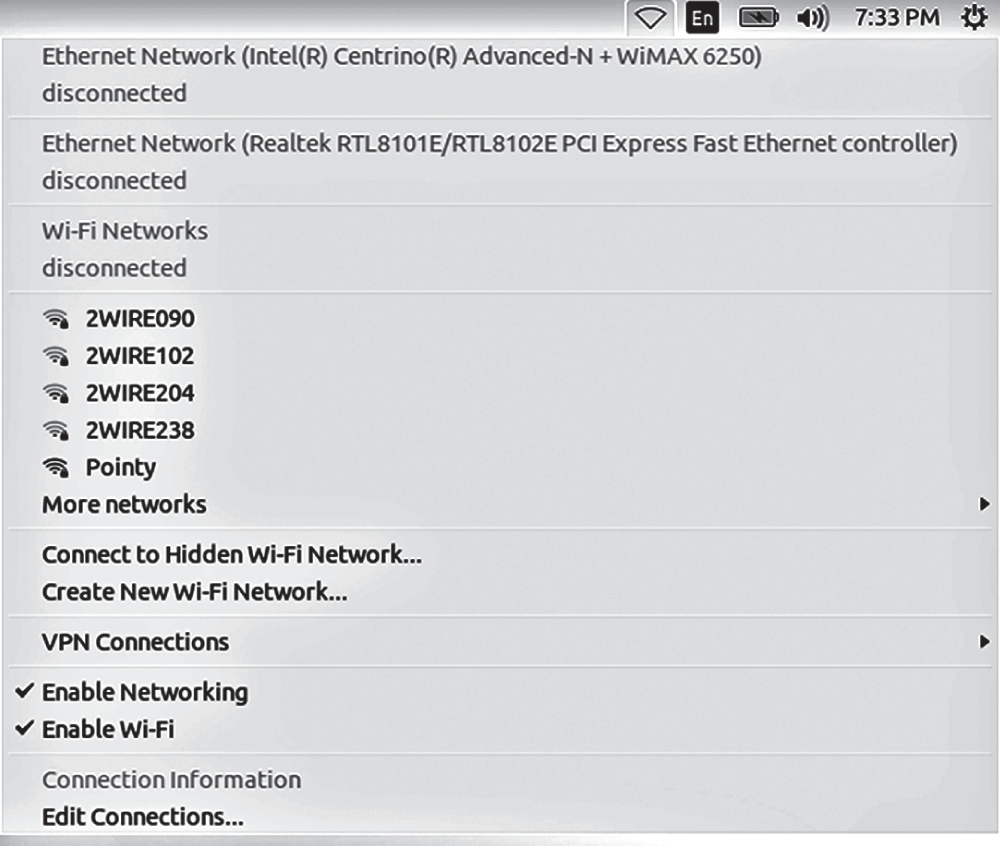

Figure: Network Manager showing a wireless network connection

Once your system is connected to a wireless access point, the icon appears as a radio signal. Click the icon, and then select Edit Connections to edit the network connection settings for the system, shown below:

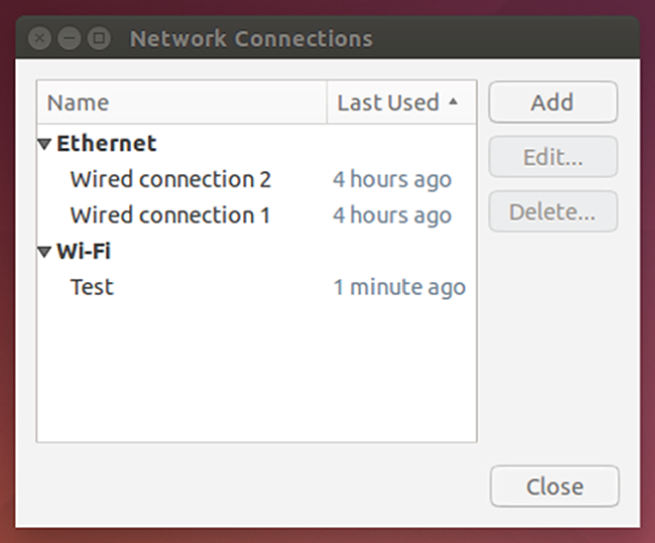

Figure: The Network Connections window

You can select the network connection to configure (either wireless or wired) and then click the Edit button to change the current configuration.
The Network Manager tool allows you to specify all four of the network configuration values by using the manual configuration option or to set the configuration to use DHCP to determine the settings. The Network Manager tool automatically updates the appropriate network configuration files with the updated settings.

Command-Line Tools
If you're not working with a graphical desktop client environment, you'll need to use the Linux command-line tools to set the network configuration information. Quite a few command-line tools are at your disposal. The following sections cover the ones you're most likely to run into (and that you'll likely see on the Linux+ exam).

Network Manager Command-Line Tools
The Network Manager tool also provides two different types of command-line tools:
nmtui provides a simple text-based menu tool.
nmcli provides a text-only command-line tool.

Both tools help guide you through the process of setting the required network information for your Linux system. The nmtui tool displays a stripped-down version of the graphical tool where you can select a network interface and assign network properties to it, as shown below.

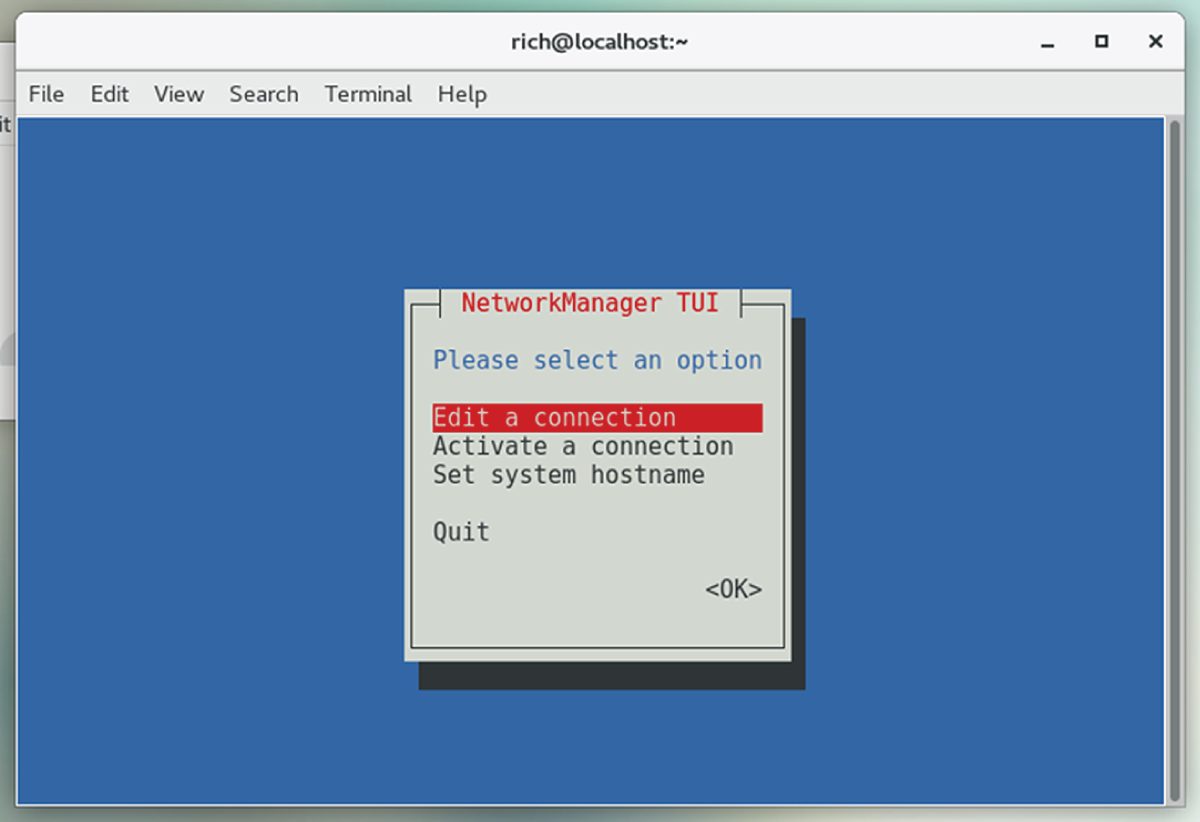

Figure: The Network Manager nmtui command-line tool

The nmcli tool doesn't attempt to use any type of graphics capabilities; it just provides a command-line interface where you can view and change the network settings. By default, the command displays the current network devices and their settings.

List: The default output of the nmcli command
$ nmcli
enp0s3: connected to enp0s3
"Intel 82540EM Gigabit Ethernet Controller (PRO/1000 MT Desktop
Adapter)
ethernet (e1000), 08:00:27:73:1C:6D, hw, mtu 1500
ip4 default
inet4 10.0.2.15/24
route4 0.0.0.0/0
route4 10.0.2.0/24
inet6 fe80::5432:eddb:51ea:fb44/64
route6 ff00::/8
route6 fe80::/64
route6 fe80::/64

The nmcli command uses command-line options to allow you to set the network settings:
# nmcli con add type ethernet con-name eth1 ifname enp0s3 ip4
10.0.2.10/24 gw4 192.168.1.254
This way, you can set all of the necessary network configuration features in a single nmcli command.

The iproute2 Utilities
The iproute2 package is a newer open source project that contains a set of command-line utilities for managing network connections. While the package contains several different programs, the ip program is the most used.
The ip command is the Swiss army knife of network programs, and it's becoming a popular method for defining network settings from the command line. It uses several command options to display the current network settings or define new network settings.

TABLE: The ip utility command options

Each command option utilizes parameters to define what to do, such as display network settings or modify existing network settings.

List: The ip address output
$ ip address show
1: lo: mtu 65536 qdisc noqueue state UNKNOWN group
default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: enp0s3: mtu 1500 qdisc pfifo_fast
state UP group default qlen 1000
link/ether 08:00:27:73:1c:6d brd ff:ff:ff:ff:ff:ff
inet 10.0.2.15/24 brd 10.0.2.255 scope global noprefixroute dynamic
enp0s3
valid_lft 84411sec preferred_lft 84411sec
inet6 fe80::5432:eddb:51ea:fb44/64 scope link noprefixroute

This example shows two network interfaces on the Linux system:
lo is the local loopback interface.
enp0s3 is a wired network interface.

The local loopback interface is a special virtual network interface. Any local program can use it to communicate with other programs just as if they were across a network. That can simplify transferring data between programs.
The enp0s3 network interface is the wired network connection for the Linux system. The ip command shows the IP address assigned to the interface (there's both an IP and an IPv6 link local address assigned), the netmask value, and some basic statistics about the packets on the interface.
If the output doesn't show a network address assigned to the interface, you can use the ip command to specify the host address and netmask values for the interface:
# ip address add 10.0.2.15/24 dev enp0s3

Then use the ip command with the route option to set the default router for the network interface:
# ip route add default via 192.168.1.254 dev enp0s3
Then make the network interface active by using the link option:
# ip link set enp0s3 up
With the single ip command, you can manage just about everything you need for your network connections.

The net-tools Legacy Tool
If you need to work on an older Linux distribution, the net-tools package may be all you have to work with. The net-tools package was the original method in Linux for managing individual aspects of the network configuration.

There are four main command-line tools that you need to use:
ethtool displays Ethernet settings for a network interface.
ifconfig displays or sets the IP address and netmask values for a network interface.
iwconfig sets the SSID and encryption key for a wireless interface.
route sets the default router address.

The ethtool command allows you to peek inside the network interface card Ethernet settings and change any properties that you may need to communicate with a network device, such as a switch.
By default, the ethtool command displays the current configuration settings for the network interface.

List: Output from the ethtool command
$ ethtool enp0s3
Settings for enp0s3:
Supported ports: [ TP ]
Supported link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Full
Supported pause frame use: No
Supports auto-negotiation: Yes
Supported FEC modes: Not reported
Advertised link modes: 10baseT/Half 10baseT/Full
Advertised pause frame use: No
Advertised auto-negotiation: Yes
Advertised FEC modes: Not reported
Speed: 1000Mb/s
Duplex: Full
Port: Twisted Pair
PHYAD: 0
Transceiver: internal
Auto-negotiation: on
MDI-X: off (auto)
Cannot get wake-on-lan settings: Operation not permitted
Current message level: 0x00000007 (7)
drv probe link
Link detected: yes

You can change features such as speed, duplex, and whether or not the network interface attempts to auto-negotiate features with the switch.
The ifconfig command is a legacy command that allows you to set the network address and subnet mask for a network interface:
$ sudo ifconfig enp0s3 down 10.0.2.10 netmask 255.255.255.0
You can also use the ifconfig command to view the current statistics for a network interface.

List: The network interface stats from the ifconfig command
$ ifconfig
enp0s3: flags=4163 mtu 1500
inet 10.0.2.15 netmask 255.255.255.0 broadcast 10.0.2.255
inet6 fe80::a00:27ff:fe55:dfbd prefixlen 64 scopeid 0x20
ether 08:00:27:55:df:bd txqueuelen 1000 (Ethernet)
RX packets 19067 bytes 28092762 (26.7 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 6431 bytes 414153 (404.4 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
lo: flags=73 mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10
loop txqueuelen 1000 (Local Loopback)
RX packets 4 bytes 240 (240.0 B)
TX packets 4 bytes 240 (240.0 B)
virbr0: flags=4099 mtu 1500
inet 192.168.122.1 netmask 255.255.255.0 broadcast 192.168.122.255
ether 52:54:00:10:7a:b8 txqueuelen 1000 (Ethernet)
RX packets 0 bytes 0 (0.0 B)
TX packets 0 bytes 0 (0.0 B)

Using the ifconfig command, you can see the link status of a network interface, whether it is receiving or transmitting packets, and whether there were any dropped packets or collisions. This can be a handy network troubleshooting tool.
Each command option utilizes parameters to define what to do, such as display network settings or modify existing network settings.


List: demonstrates how to display the current network settings by using the ifconfig command without specifying a command-line parameter.
With the net-tools package you must also set the default router using the separate route command:
# route add default gw 192.168.1.254

You can also use the route command by itself to view the current default router configured for the system:
$ route
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
default 192.168.1.254 0.0.0.0 UG 0 0 0 enp0s3
192.168.1.0 * 255.255.255.0 U 1 0 0 enp0s3

The default router defined for this Linux system is 192.168.1.254 and is available from the enp0s3 network interface. The output also shows that to get to the 192.168.1.0 network, you don't need a gateway because that's the local network the Linux system is connected to.
If your network is connected to multiple networks via multiple routers, you can manually create the routing table in the system by using the add or del command-line option for the route command.

The format for that is:
route [add] [del] target gw gateway
where target is the target host or network and gateway is the router address.

If you're working with a wireless network card, you must assign the wireless SSID and encryption key values using the iwconfig command:
# iwconfig wlp6s0 essid "MyNetwork" key s:mypassword

The essid parameter specifies the access point SSID name, and the key parameter specifies the encryption key required to connect to it. Notice that the encryption key is preceded by an s:. That allows you to specify the encryption key in ASCII text characters; otherwise you'll need to specify the key using hexadecimal values.

If you don't know the name of a local wireless connection, you can use the iwlist command to display all of the wireless signals your wireless card detects. Just specify the name of the wireless device, and use the scan option:
$ sudo iwlist wlp6s0 scan

Once you've set the wireless network card configuration, you can proceed to assign it an IP address and default route the same as you would a wired network card.

Tip: /etc/sysctl.conf configuration file, or files stored in the /etc/sysctl.d or /usr/lib/sysctl.d directories. This file defines kernel parameters that the Linux system uses when interacting with the network interface. This has become a popular method to use for setting advanced security features, such as to disable responding to ICMP messages by setting the icmp_echo_ignore_broadcasts value to 1, or if your system has multiple network interface cards, to disable packet forwarding by setting the ip_forward value to 0.

Additional Network Features
If your network uses DHCP, you'll need to ensure that a proper DHCP client program is running on your Linux system. The DHCP client program communicates with the network DHCP server in the background and assigns the necessary IP address settings as directed by the DHCP server.

There are three common DHCP programs available for Linux systems:
dhcpcd
dhclient
pump

The dhcpcd program is becoming the most popular of the three, but you'll still see the other two used in some Linux distributions.
When you use your Linux system's software package manager utility to install the DHCP client program, it sets the program to automatically launch at boot time and handle the IP address configuration needed to interact on the network.

Note: /etc/dhcpd.conf file contains the IP address settings that the server offers to DHCP clients.

The file contains a section for each subnet the DHCP server services:
subnet 10.0.2.0 netmask 255.255.255.0 {
option routers 192.168.1.254;
option subnet-mask 255.255.255.0;
option domain-name "mynetwork.com";
option domain-name-servers 192.168.1.254;
option time-offset -18000;
# Eastern Standard Time
range 10.0.2.1 10.0.2.100;
}

One final network configuration setting you may run into has to do with network interface bonding. Bonding allows you to aggregate multiple interfaces into one virtual network device.
You can then tell the Linux system how to treat the virtual network device using three different bonding types:
Load balancing: Network traffic is shared between two or more network interfaces.
Aggregation: Two or more network interfaces are combined to create one larger network pipe.
Active/passive: One network interface is live while the other is used as a backup for fault tolerance.
There are seven different bonding modes you can choose from.

TABLE: Network interface bonding modes

To initialize network interface bonding, you must first load the bonding module in the Linux kernel:
$ sudo modprobe bonding
This creates a bond0 network interface, which you can then define using the ip utility:
$ sudo ip link add bond0 type bond mode 4
Once you've defined the bond type, you can add the appropriate network interfaces to the bond using the ip utility:
$ sudo ip link set eth0 master bond0
$ sudo ip link set eth1 master bond0
The Linux system will then treat the bond0 device as a single network interface using the load balancing or aggregation method you defined.
Tip: brctl command allows you to control how the bridging behaves. To do this, though, you must set the ip_forward kernel parameter in the /etc/sysctl.conf file to 1 to enable bridging.

Command-Line Networking Tool
Linux provides a wealth of networking tools for connecting to remote hosts, but none is more versatile than the netcat program. The netcat program can act as either a network server or network client, sending and receiving data packets using either TCP or UDP. This section provides some examples of the versatility of the netcat program.
Depending on your Linux distribution, the netcat program may be available as either netcat, or just nc. The format of the command is simply:
nc host port
where host is the IP address or hostname of the remote server and port is the port number for the connection. By default netcat will attempt to establish a TCP connection with the remote server. To establish a UDP connection, add the -u option.
There are lots of different options available to customize the connection.


TABLE: The netcat command options

A great troubleshooting feature of nc is the ability to send HTTP requests directly to servers and see the HTTP response as well as the HTML code returned.

List: Using netcat to retrieve HTTP data
$ printf "GET / HTTP/1.0\r\n\r\n" | nc richblum.com 80
HTTP/1.1 200 OK
Date: Mon, 04 Dec 2021 16:14:35 GMT
Server: Apache
Vary: Accept-Encoding
Connection: close
Content-Type: text/html
,,,
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

Rich Blum's Blog

The output in the above List hows the HTTP options sent by the server, followed by the HTML code for the web page.

You can also create a simple chat dialogue between two systems from the command-line. On one system, just start nc in listen mode using the -l option:
$ nc -l 8000
Then on the other system, connect to that port on the remote system:
$ nc hostname 8000

Now any text you type in one side displays on the other side! To break the connection, just press Ctrl+C on either side of the connection.
Finally, another great use of the netcat program is as a quick way to transfer a file from one system to another. Just redirect the output of the listening host to a file:
$ nc -l 8000> filename.txt

Then on the sending host, redirect the file as input to the sending nc command:
$ nc hostname 8000 < myfile.txt
When the file transfer completes, both sides of the connection will automatically terminate, and the new file will be available on the receiving host. This makes moving files between systems a breeze!
Tip: s_client package allows you to do that. It can utilize certificates to establish connections with secure servers.

Basic Network Troubleshooting
Once you have a Linux kernel installed, there are a few things you can do to check to make sure things are operating properly. The following sections walk through the commands you should know to monitor the network activity, including watching what processes are listening on the network and what connections are active from your system.

Sending Test Packets
One way to test network connectivity is to send test packets to known hosts. Linux provides the ping and ping6 commands to do that. The ping and ping6 commands send Internet Control Message Protocol (ICMP) packets to remote hosts using either the IP (ping) or IPv6 (ping6) protocol. ICMP packets work behind the scenes to track connectivity and provide control messages between systems. If the remote host supports ICMP, it will send a reply packet back when it receives a ping packet.

The basic format for the ping command is to specify the IP address of the remote host:
$ ping 10.0.2.2
PING 10.0.2.2 (10.0.2.2) 56(84) bytes of data.
64 bytes from 10.0.2.2: icmp_seq=1 ttl=63 time=14.6 ms
64 bytes from 10.0.2.2: icmp_seq=2 ttl=63 time=3.82 ms
64 bytes from 10.0.2.2: icmp_seq=3 ttl=63 time=2.05 ms
64 bytes from 10.0.2.2: icmp_seq=4 ttl=63 time=0.088 ms
64 bytes from 10.0.2.2: icmp_seq=5 ttl=63 time=3.54 ms
64 bytes from 10.0.2.2: icmp_seq=6 ttl=63 time=3.97 ms
64 bytes from 10.0.2.2: icmp_seq=7 ttl=63 time=0.040 ms
--- 10.0.2.2 ping statistics ---
7 packets transmitted, 7 received, 0% packet loss, time 6020ms
rtt min/avg/max/mdev = 0.040/4.030/14.696/4.620 ms

The ping command continues sending packets until you press Ctrl+C. You can also use the -c command-line option to specify a set number of packets to send and then stop.


For the ping6 command, things get a little more complicated. If you're using an IPv6 link local address, you also need to tell the command which interface to send the packets out on:
$ ping6 –c 4 fe80::c418:2ed0:aead:cbce%enp0s3
PING fe80::c418:2ed0:aead:cbce%enp0s3(fe80::c418:2ed0:aead:cbce) 56 data
bytes
64 bytes from fe80::c418:2ed0:aead:cbce: icmp_seq=1 ttl=128 time=1.47 ms
64 bytes from fe80::c418:2ed0:aead:cbce: icmp_seq=2 ttl=128 time=0.478 ms
64 bytes from fe80::c418:2ed0:aead:cbce: icmp_seq=3 ttl=128 time=0.777 ms
64 bytes from fe80::c418:2ed0:aead:cbce: icmp_seq=4 ttl=128 time=0.659 ms
--- fe80::c418:2ed0:aead:cbce%enp0s3 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3003ms
rtt min/avg/max/mdev = 0.478/0.847/1.475/0.378 ms

The %enp0s3 part tells the system to send the ping packets out the enp0s3 network interface for the link local address.
Yet another useful tool is the traceroute command. The traceroute command uses a feature of ICMP packets that restrict the number of network “hops” they can make. By manipulating that value in the packet, the traceroute command allows you to see the network routers used to get the packets from the client to the server.

inally, the mtr program is a package that utilizes data retrieved from ping and traceroute commands to document network availability and latency in a real-time chart.

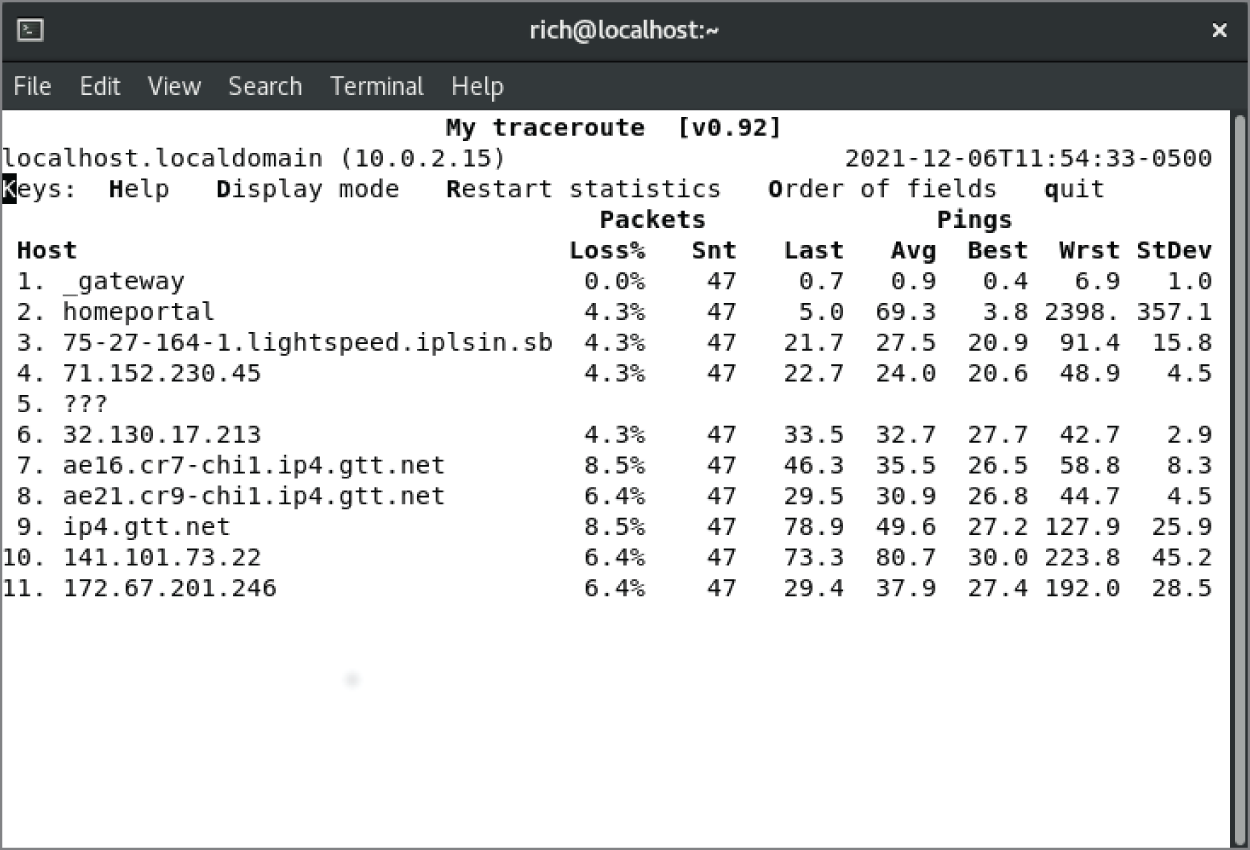

Figure below shows the output of the mtr command tracing the connectivity to the linux.org server.

Figure:  Using mtr to monitor network connectivity to a server

Warning: - Unfortunately, these days many hosts don't support ICMP packets because they can be used to create a denial-of-service (DOS) attack against the host. Don't be surprised if you try to ping a remote host and don't get any responses.

Finding Host Information
Sometimes the problem isn't with network connectivity but with the DNS hostname system. You can test a hostname using the host command:
$ host www.linux.org
www.linux.org is an alias for linux.org.
linux.org has address 107.170.40.56
linux.org mail is handled by 20 mx.iqemail.net.

The host command queries the DNS server to determine the IP addresses assigned to the specified hostname. By default it returns all IP addresses associated with the hostname. Some hosts are supported by multiple servers in a load balancing configuration.

The host command will show all of the IP addresses associated with those servers:
$ host www.yahoo.com
www.yahoo.com is an alias for atsv2-fp-shed.wg1.b.yahoo.com.
atsv2-fp-shed.wg1.b.yahoo.com has address 98.138.219.231
atsv2-fp-shed.wg1.b.yahoo.com has address 72.30.35.9
atsv2-fp-shed.wg1.b.yahoo.com has address 72.30.35.10
atsv2-fp-shed.wg1.b.yahoo.com has address 98.138.219.232
atsv2-fp-shed.wg1.b.yahoo.com has IPv6 address 2001:4998:58:1836::10
atsv2-fp-shed.wg1.b.yahoo.com has IPv6 address 2001:4998:58:1836::11
atsv2-fp-shed.wg1.b.yahoo.com has IPv6 address 2001:4998:44:41d::3
atsv2-fp-shed.wg1.b.yahoo.com has IPv6 address 2001:4998:44:41d::4

You can also specify an IP address for the host command, and it will attempt to find the hostname associated with it:
$ host 98.138.219.231
231.219.138.98.in-addr.arpa domain name pointer media-router-
fp1.prod1.media.vip.ne1.yahoo.com.
$
Notice, though, that often an IP address will resolve to a generic server hostname that hosts the website and not the website alias, as is the case here with the www.linux.org IP address.

Another great tool to use is the dig command. The dig command displays all of the DNS data records associated with a specific host or network. For example, you can look up the information for a specific hostname:
$ dig www.linux.org
; <<>> DiG 9.9.4-RedHat-9.9.4-18.el7_1.5 <<>> www.linux.org
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 45314
;; flags: qr rd ra; QUERY: 1, ANSWER: 2, AUTHORITY: 0, ADDITIONAL: 1
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
;; QUESTION SECTION:
;www.linux.org. IN A
;; ANSWER SECTION:
www.linux.org. 14400 IN CNAME linux.org.
linux.org. 3600 IN A 107.170.40.56
;; Query time: 75 msec
;; SERVER: 192.168.1.254#53(192.168.1.254)
;; WHEN: Sat Feb 06 17:44:29 EST 2016
;; MSG SIZE rcvd: 72

Or you can look up DNS data records associated with a specific network service, such as a mail server:
$ dig linux.org MX
; <<>> DiG 9.9.5-3ubuntu0.5-Ubuntu <<>> linux.org MX
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 16202
;; flags: qr rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1
;; OPT PSEUDOSECTION:
;linux.org. IN MX
linux.org. 3600 IN MX 20 mx.iqemail.net.
;; SERVER: 127.0.1.1#53(127.0.1.1)
;; WHEN: Tue Feb 09 12:35:43 EST 2016
;; MSG SIZE rcvd: 68

If you need to look up DNS information for multiple servers or domains, the command provides an interactive interface where you can enter commands:
$ nslookup
> www.google.com
Server: 192.168.1.254
Address: 192.168.1.254#53
Non-authoritative answer:
Name: www.google.com
Address: 172.217.2.228
> www.wikipedia.org
Name: www.wikipedia.org
Address: 208.80.153.224
> exit

You can also dynamically specify the address of another DNS server to use for the name lookups, which is a handy way to determine if your default DNS server is at fault if a name resolution fails.
One final tool that can be useful is the whois command. The whois command attempts to connect to the centralized Internet domain registry at http://whois.networksolutions.com and retrieve information about who registered the requested domain name.


List: Partial output from the whois command
$ whois linux.com
Domain Name: LINUX.COM
Registry Domain ID: 4245540_DOMAIN_COM-VRSN
Registrar WHOIS Server: whois.1api.net
Registrar URL: http://www.1api.net
Updated Date: 2021-03-18T15:40:08Z
Creation Date: 1994-06-02T04:00:00Z
Registry Expiry Date: 2022-06-01T04:00:00Z
Registrar: 1API GmbH
Registrar IANA ID: 1387
Registrar Abuse Contact Email: [email protected]
Registrar Abuse Contact Phone: +49.68949396850
Domain Status: clientTransferProhibited
https://icann.org/epp#clientTransferProhibited
Name Server: NS1.DNSIMPLE.COM
Name Server: NS2.DNSIMPLE.COM
Name Server: NS3.DNSIMPLE.COM
Name Server: NS4.DNSIMPLE.COM
...
Theoretically the registry contains complete contact information for the owner of the domain, but these days due to privacy concerns that information is usually blocked. But there is usually a contact email address for the domain in case you need to report suspected abuse from the domain.

Advanced Network Troubleshooting
Besides the simple network tests shown in the previous section, Linux has some more advanced programs that can provide more detailed information about the network environment. Sometimes it helps to be able to see just what network connections are active on a Linux system. There are two ways to troubleshoot that issue: the netstat command and the ss command.

The netstat Command
The netstat command is part of the net-tools package and can provide a wealth of network information for you.

By default, it lists all of the open network connections on the system:
# netstat

Active Internet connections (w/o servers)
Proto Recv-Q Send-Q Local Address Foreign Address State
Active UNIX domain sockets (w/o servers)
Proto RefCnt Flags Type State I-Node Path
unix 2 [ ] DGRAM 10825
@/org/freedesktop/systemd1/notify
unix 2 [ ] DGRAM 10933
/run/systemd/shutdownd
unix 6 [ ] DGRAM 6609
/run/systemd/journal/socket
unix 25 [ ] DGRAM 6611 /dev/log
unix 3 [ ] STREAM CONNECTED 25693
unix 3 [ ] STREAM CONNECTED 20770
/var/run/dbus/system_bus_socket
unix 3 [ ] STREAM CONNECTED 19556
unix 3 [ ] STREAM CONNECTED 19511
unix 2 [ ] DGRAM 24125
unix 3 [ ] STREAM CONNECTED 19535
unix 3 [ ] STREAM CONNECTED 18067
unix 3 [ ] STREAM CONNECTED 32358
unix 3 [ ] STREAM CONNECTED 24818

The netstat command produces lots of output because there are normally lots of programs that use network services on Linux systems.

You can limit the output to just TCP or UDP connections by using the –t command-line option for TCP connections or –u for UDP connections:
$ netstat -t

Proto Recv-Q Send-Q Local Address Foreign Address State
tcp 1 0 10.0.2.15:58630 productsearch.ubu:https CLOSE_WAIT
tcp6 1 0 ip6-localhost:57782 ip6-localhost:ipp CLOSE_WAIT

You can also get a list of what applications are listening on which network ports by using the –l option:
$ netstat -l

Active Internet connections (only servers)
tcp 0 0 ubuntu02:domain *:* LISTEN
tcp 0 0 localhost:ipp *:* LISTEN
tcp6 0 0 ip6-localhost:ipp [::]:* LISTEN
udp 0 0 *:ipp *:*
udp 0 0 *:mdns *:*
udp 0 0 *:36355 *:*
udp 0 0 ubuntu02:domain *:*
udp 0 0 *:bootpc *:*
udp 0 0 *:12461 *:*
udp6 0 0 [::]:64294 [::]:*
udp6 0 0 [::]:60259 [::]:*
udp6 0 0 [::]:mdns [::]:*

As you can see, just a standard Linux workstation still has lots of things happening in the background, waiting for connections.
Yet another great feature of the netstat command is that the –s option displays statistics for the different types of packets the system has used on the network:
# netstat -s

Ip:
240762 total packets received
0 forwarded
0 incoming packets discarded
240747 incoming packets delivered
206940 requests sent out
32 dropped because of missing route

Icmp:
57 ICMP messages received
0 input ICMP message failed.
ICMP input histogram:
destination unreachable: 12
timeout in transit: 38
echo replies: 7
7 ICMP messages sent
0 ICMP messages failed
ICMP output histogram:
echo request: 7


IcmpMsg:
InType0: 7
InType3: 12
InType11: 38
OutType8: 7

Tcp:
286 active connections openings
0 passive connection openings
0 failed connection attempts
0 connection resets received
0 connections established
239933 segments received
206091 segments send out
0 segments retransmited
0 bad segments received.
0 resets sent


Udp:
757 packets received
0 packets to unknown port received.
0 packet receive errors
840 packets sent
0 receive buffer errors
0 send buffer errors


UdpLite:


TcpExt:
219 TCP sockets finished time wait in fast timer
15 delayed acks sent
26 delayed acks further delayed because of locked socket
Quick ack mode was activated 1 times
229343 packet headers predicted
289 acknowledgments not containing data payload received
301 predicted acknowledgments
TCPRcvCoalesce: 72755

IpExt:
InNoRoutes: 2
InMcastPkts: 13
OutMcastPkts: 15
InOctets: 410722578
OutOctets: 8363083
InMcastOctets: 2746
OutMcastOctets: 2826
The netstat statistics output can give you a rough idea of how busy your Linux system is on the network or if there's a specific issue with one of the protocols installed.

Examining Sockets
The netstat tool provides a wealth of network information, but it can often be hard to determine just which program is listening on which open port. The command can come to your rescue for that.

A program connection to a port is called a socket. The ss command can link which system processes are using which network sockets that are active:
$ ss -anpt

State Recv-Q Send-Q Local Address:Port Peer Address:Port
LISTEN 0 100 127.0.0.1:25 *:*
LISTEN 0 128 *:111 *:*
LISTEN 0 5 192.168.122.1:53 *:*
LISTEN 0 128 *:22 *:*
LISTEN 0 128 127.0.0.1:631 *:*
LISTEN 0 100 ::1:25 :::*
LISTEN 0 128 :::111 :::*
LISTEN 0 128 :::22 :::*
LISTEN 0 128 ::1:631 :::*
ESTAB 0 0 ::1:22 ::1:40490
ESTAB 0 0 ::1:40490 ::1:22
users:(("ssh",pid=15176,fd=3))

The -anpt option displays both listening and established TCP connections and the process they're associated with. This output shows that the ssh port (port 22) has an established connection and is controlled by process ID 15176, the ssh program.

Monitoring the Network
Often when troubleshooting network applications it helps to see what's going on “behind the scenes” in the network. Knowing what TCP or UDP packets are being sent between the client and server can be crucial in determining what's going wrong.

Fortunately, Linux has a few different tools that can help with that:
tcpdump—the legacy command-line tool for watching network packets
wireshark—a graphical tool for watching network packets and performing advanced network analysis
tshark—the command-line version of Wireshark

The tcpdump program is a legacy tool that's been around for a long time, but it can still be useful if that's all you have to work with. It provides simple capturing of network data on the system and can do rudimentary decoding of the packets to break out the different data contained within the network packet.
The tcpdump program also provides basic filtering capabilities so that you can limit the capture to a single host, client, or even network session.
The wireshark package is an open source graphical tool for performing advanced network analysis of packets. Not only will wireshark capture and decode network packets, but it also provides color coding of traffic types and can display groups of packets based on applications.

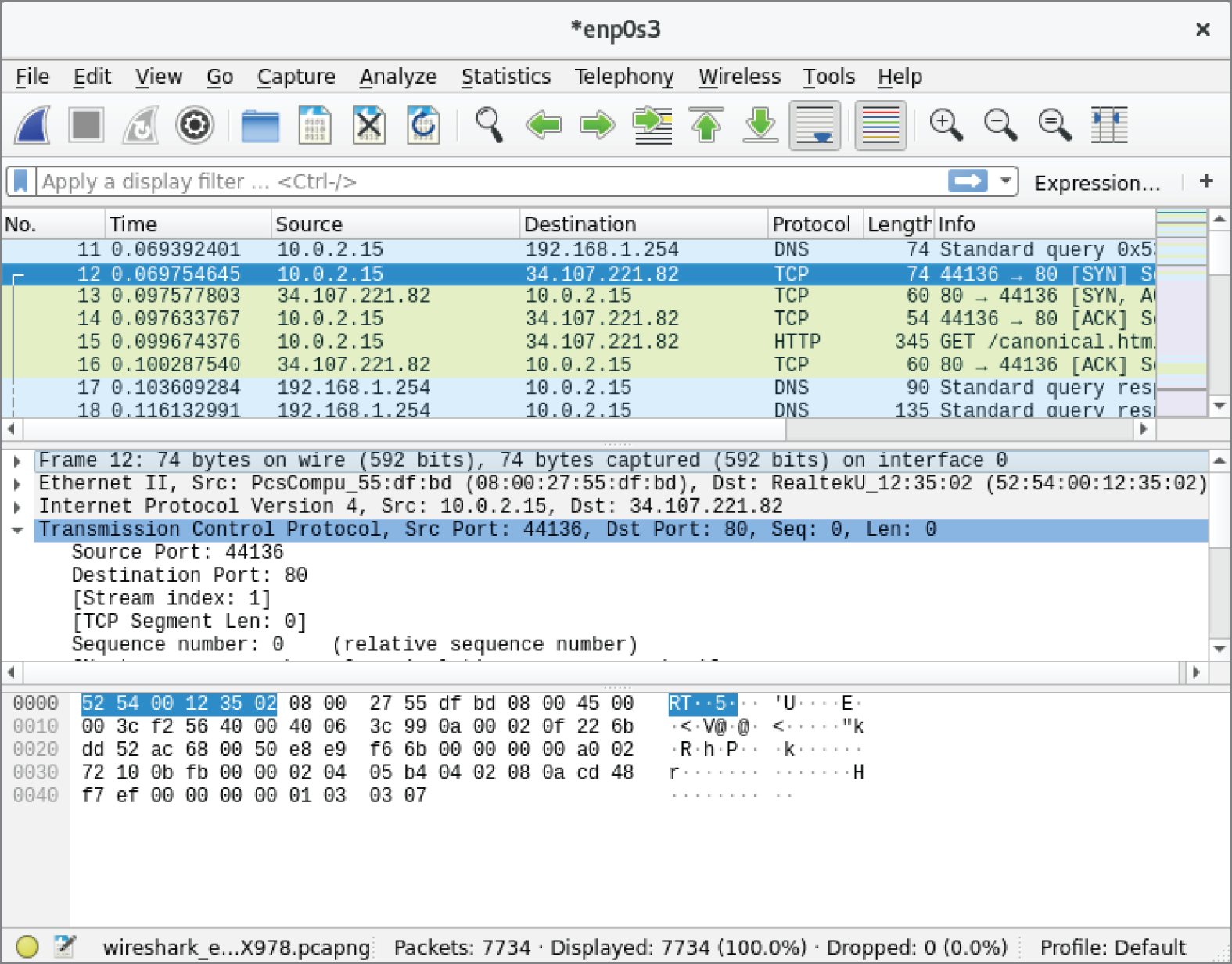

Figure below shows a sample wireshark display of simple network traffic.

Figure: The wireshark network analysis window

If you don't have a graphical desktop environment on your Linux system, you can still use the power of wireshark from the command line with tshark. The tshark program provides many of the same network analysis tools as wireshark, but in a more rudimentary display format on the command line.
sudo command from a normal account to gain root privileges.

EXERCISE: Determining the Network Environment
This exercise will demonstrate how to quickly assess the network configuration and programs for your Linux system without you having to dig through lots of configuration files.

To document your system network information, follow these steps (depending on your distribution you may need to first install the netstat and iwlist programs from the software repository):

Log in as root, or acquire root privileges by using su or by using sudo with each of the following commands.
Type ip address show to display the current network interfaces on your system. You will most likely see a loopback interface (named l0) and one or more network interfaces. Write down the IP (called inet) and IPv6 (called inet6) addresses assigned to each network interface along with the hardware address and the network mask address.
If your system has a wireless network card, type iwlist wlan0 scan to view the wireless access points in your area.
If your system has a wireless network card, type iwconfig to display the current wireless settings for your network interface.
Type route to display the routes defined on your system. Note the default gateway address assigned to your system. It should be on the same network as the IP address assigned to the system.
Type cat /etc/resolv.conf to display the DNS settings for your system.
Type netstat –l to display the programs listening for incoming network connections. The entries marked as unix are using the loopback address to communicate with other programs internally on your system.
Type ss -anpt to display the processes that have active network ports open on your system.
Connecting Linux systems to networks can be painless if you have the correct tools. To connect the Linux system, you'll need an IP address, a netmask address, a default router, a hostname, and a DNS server. If you don't care what IP address is assigned to your Linux system, you can obtain those values automatically using DHCP. However, if you are running a Linux server that requires a static IP address, you may need to configure these values manually.

Linux stores network connection information in configuration files. You can either manually modify the files to store the appropriate network information or use a graphical or command-line tool to do that. The Network Manager tool is the most popular graphical tool used by Linux distributions. It allows you to configure both wired and wireless network settings from a graphical window. The Network Manager icon in the system tray area shows network connectivity as well as basic wireless information for wireless network cards.

If you must configure your network settings from the command line, you'll need a few different tools. For wireless connections, use the iwconfig command to set the wireless access point and SSID key. For both wireless and wired connections, use the ifconfig or ip command to set the IP address and netmask values for the interface. You may also need to use the route command to define the default router for the local network.

To use hostnames instead of IP addresses, you must define a DNS server for your network. You do that in the /etc/resolv.conf configuration file. You will also need to define the hostname for your Linux system in either the /etc/hostname or the /etc/HOSTNAME file.

Once your network configuration is complete, you may have to do some additional troubleshooting for network problems. The ping and ping6 commands allow you to send ICMP packets to remote hosts to test basic connectivity. If you suspect issues with hostnames, you can use the host and dig commands to query the DNS server for hostnames.

For more advanced network troubleshooting, you can use the netstat and ss commands to display what applications are using which network ports on the system.


Important Exam Questions:


1. Describe the command-line utilities required to configure and manipulate Ethernet network interfaces.
- To set the network address on a network interface you can use the nmtui, nmcli, ip, or ifconfig commands. The nmtui and nmcli commands are available on systems that utilize the Network Manager tool for managing network interfaces. The ip command is from the iproute2 package, and the ifconfig command is from the legacy net-tools package. If you use the ifconfig command you'll also need to use the route command to set the default router (or gateway) for the network.

2. Explain how to configure basic access to a wireless network.
- Linux uses the iwlist command to list all wireless access points detected by the wireless network card. You can configure the settings required to connect to a specific wireless network using the iwconfig command. At a minimum, you'll need to configure the access point SSID value and most likely specify the encryption key value to connect to the access point.

3. Describe how to manipulate the routing table on a Linux system.
- For legacy systems use the route command to display the existing router table used by the Linux system. You can add a new route by using the add option or remove an existing route by using the del option. You can specify the default router (gateway) used by the network by adding the default keyword to the command. For systems that utilize the iproute2 package, you use the ip route command to display and manipulate the routing table.

4. Summarize the tools you would need to analyze the status of network devices.- The nmtui, nmcli, ifconfig and ip commands display the current status of all network interfaces on the system. You can also use the netstat or ss command to display statistics for all listening network ports.

5. Describe how Linux initializes the network interfaces.
- Debian-based Linux systems use the /etc/network/interfaces file to configure the IP address, netmask, and default router. Red Hat–based Linux systems use files in the /etc/sysconfig/network-scripts folder. The ifcfg-emp0s3 file contains the IP address and netmask settings, while the network file contains the default router settings. These files are examined at bootup to determine the network interface configuration. Newer versions of Ubuntu use the Netplan tool, which stores the network configuration in the /etc/netplan folder.

6. Explain how to test network connectivity.
- The ping and ping6 commands allow you to send ICMP messages to remote hosts and display the response received. The traceroute command allows you to view the network path used to reach a specific remote host. The mtr command provides real-time connectivity and response statistics for a specific remote host.

7. Describe one graphical tool used to configure network settings in Linux.
- The Network Manager tool provides a graphical interface for changing settings on the network interfaces. The Network Manager appears as an icon in the desktop system tray area. If your Linux system uses a wireless network card, the icon appears as a radio signal, while for wired network connections it appears as a mini-network. When you click the icon, it shows the current network status, and for wireless interfaces, it shows a list of the access points detected. When you open the Network Manager interface, it allows you to either set static IP address information or configure the network to use a DHCP server to dynamically set the network configuration.
