Objective 1.3: Given a scenario, configure and manage storage using the appropriate tools. The world runs on data. Whether it's an employee database, a folder with all of your family pictures, or just your weekly bowling scores, the ability to save and retrieve data is a must for every application. Linux provides lots of different ways to store and manage files for applications. This guide first discusses the basics of how Linux handles storage devices, and then it walks through how you use those methods to manage data in a Linux environment. Key Topics: Storage Basics Partitioning Tools Understanding Filesystems Formatting Filesystems Mounting Filesystems Managing Filesystems Storage Alternatives Storage Basics The most common way to persistently store data on computer systems is to use a hard disk drive (HDD). Hard disk drives are physical devices that store data using a set of disk platters that spin around, storing data magnetically on the platters with a movable read/write head that writes and retrieves magnetic images on the platters. These days, another popular type of persistent storage is called a solid-state drive (SSD). These drives use integrated circuits to store data electronically. There are no moving parts contained in SSDs, making them faster and more resilient than HDDs. Although currently SSDs are more expensive than HDDs, technology is quickly changing that, and it may not be long before HDDs are a thing of the past. Linux handles both HDD and SSD storage devices the same way. It mostly depends on the connection method used to connect the drives to the Linux system. The following sections describe the different methods that Linux uses in connecting and using both HDD and SSD devices. Drive Connections While HDDs and SSDs differ in how they store data, they both interface with the Linux system using the same methods. There are four main types of drive connections that you'll run into with Linux systems: Parallel Advanced Technology Attachment (PATA) connects drives using a parallel interface, which requires a wide cable. PATA supports two devices per adapter. Serial Advanced Technology Attachment (SATA) connects drives using a serial interface, but at a much faster speed than PATA. SATA supports up to four devices per adapter. Small Computer System Interface (SCSI) connects drives using a parallel interface, but with the speed of SATA. SCSI supports up to eight devices per adapter. Nonvolatile Memory Express (NVMe) connects solid-state drives using a parallel interface for maximum data transfer speeds. The NVMe standard supports up to 12 devices per adapter. When you connect a drive to a Linux system, the Linux kernel assigns the drive device a file in the /dev folder. That file is called a raw device, as it provides a path directly to the drive from the Linux system. Any data written to the file is written to the drive, and reading the file reads data directly from the drive. For PATA devices, this file is named /dev/hdx, where x is a letter representing the individual drive, starting with a. For SATA and SCSI devices, Linux uses /dev/sdx, where x is a letter representing the individual drive, again starting with a. With NVMe devices, Linux uses /dev/nvmex, again where x is a letter representing the individual drive. Thus, to reference the first SATA device on the system, you'd use /dev/sda, then for the second device /dev/sdb, and so on. Partitioning Drives Most operating systems, including Linux, allow you to partition a drive into multiple sections. A partition is a self-contained section in the drive that the operating system treats as a separate storage space. Partitioning drives can help you better organize your data, such as segmenting operating system data from user data. If a rogue user fills up the disk space with data, the operating system will still have room to operate on the separate partition. Partitions must be tracked by some type of indexing system on the drive. Systems that use the old BIOS boot loader method use the Master Boot Record (MBR) method for managing disk partitions. This method only supports up to four primary partitions on a drive. Each primary partition itself, however, can be split into multiple extended partitions. Systems that use the UEFI boot loader method use the more advanced GUID Partition Table (GPT) method for managing partitions, which supports up to 128 partitions on a drive. Linux assigns the partition numbers in the order that the partition appears on the drive, starting with number 1. Linux creates /dev files for each separate disk partition. It attaches the partition number to the end of the device name and numbers the primary partitions starting at 1, so the first primary partition on the first SATA drive would be /dev/sda1. MBR extended partitions are numbered starting at 5, so the first extended partition is assigned the file /dev/sda5. Automatic Drive Detection Linux systems detect drives and partitions at boot time and assign each one a unique device filename. However, with the invention of removable USB drives (such as memory sticks), which can be added and removed at will while the system is running, that method needed to be modified. Most Linux systems now use the udev application. The udev program runs in the background at all times and automatically detects new hardware connected to the running Linux system. As you connect new drives, USB devices, or optical drives (such as CD and DVD devices), udev will detect them and assign each one a unique device filename in the /dev folder. Another feature of the udev application is that it also creates persistent device files for storage devices. When you add or remove a removable storage device, the /dev name assigned to it may change, depending on what devices are connected at any given time. That can make it difficult for applications to find the same storage device each time.
To solve that problem, the udev application uses the /dev/disk folder to create links to the /dev storage device files based on unique attributes of the drive. There are four separate folders udev creates for storing links: /dev/disk/by-id links storage devices by their manufacturer make, model, and serial number. /dev/disk/by-label links storage devices by the label assigned to them. /dev/disk/by-path links storage devices by the physical hardware port they are connected to. /dev/disk/by-uuid links storage devices by the 128-bit universally unique identifier (UUID) assigned to the device.
With the udev device links, you can specifically reference a storage device by a permanent identifier rather than where or when it was plugged into the Linux system. Partitioning Tools After you connect a drive to your Linux system, you'll need to create partitions on it (even if there's only one partition). Linux provides several tools for working with raw storage devices to create partitions. The following sections cover the most popular partitioning tools you'll run across in Linux. Working with fdisk The most common command-line partitioning tool is the fdisk utility. The fdisk program allows you to create, view, delete, and modify partitions on any drive that uses the MBR method of indexing partitions.
To use the fdisk program, you must specify the drive device name (not the partition name) of the device you want to work with: $ sudo fdisk /dev/sda [sudo] password for rich: Welcome to fdisk (util-linux 2.23.2). Changes will remain in memory only, until you decide to write them. Be careful before using the write command. Command (m for help): The fdisk program uses its own command line that allows you to submit commands to work with the drive partitions. TABLE: Common fdisk commands
The p command displays the current partition scheme on the drive: Command (m for help): p
Disk /dev/sda: 10.7 GB, 10737418240 bytes, 20971520 sectors Units = sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes Disk label type: dos Disk identifier: 0x000528e6 Device Boot Start End Blocks Id System /dev/sda1 * 2048 2099199 1048576 83 Linux /dev/sda2 2099200 20971519 9436160 83 Linux
In this example, the /dev/sda drive is sectioned into two partitions, sda1 and sda2. The Id and System columns refer to the type of filesystem the partition is formatted to handle. We cover that in the section “Understanding Filesystems” later in this guide. Both partitions are formatted to support a Linux filesystem. The first partition is allocated about 1 GB of space, whereas the second is allocated a little over 9 GB of space. The fdisk command is somewhat rudimentary in that it doesn't allow you to alter the size of an existing partition; all you can do is delete the existing partition and rebuild it from scratch. To be able to boot the system from a partition, you must set the boot flag for the partition. You do that with the a command. The bootable partitions are indicated in the output listing with an asterisk. If you make any changes to the drive partitions, you must exit using the w command to write the changes to the drive. Working with gdisk If you're working with drives that use the GPT indexing method, you'll need to use the gdisk program: $ sudo gdisk /dev/sda
GPT fdisk (gdisk) version 1.0.3 Partition table scan: MBR: protective BSD: not present APM: not present GPT: present Found valid GPT with protective MBR; using GPT. Command (? for help):
The gdisk program identifies the type of formatting used on the drive. If the drive doesn't currently use the GPT method, gdisk offers you the option to convert it to a GPT drive. Warning: - Be careful with converting the drive method specified for your drive. The method you select must be compatible with the system firmware (BIOS or UEFI). If not, your drive will not be able to boot. The gdisk program also uses its own command prompt, allowing you to enter commands to manipulate the drive layout. TABLE: Common gdisk commands
You'll notice that many of the gdisk commands are similar to those in the fdisk program, making it easier to switch between the two programs. One of the added options that can come in handy is the i option, which displays more detailed information about a partition: Command (? for help): i Partition number (1-3): 2 Partition GUID code: 0FC63DAF-8483-4772-8E79-3D69D8477DE4 (Linux filesystem) Partition unique GUID: 5E4213F9-9566-4898-8B4E-FB8888ADDE78 First sector: 1953792 (at 954.0 MiB) Last sector: 26623999 (at 12.7 GiB) Partition size: 24670208 sectors (11.8 GiB) Attribute flags: 0000000000000000 Partition name: '' The GNU parted Command The GNU parted program provides yet another command-line interface for working with drive partitions: $ sudo parted
GNU Parted 3.2 Using /dev/sda Welcome to GNU Parted! Type 'help' to view a list of commands. (parted) print Model: ATA VBOX HARDDISK (scsi) Disk /dev/sda: 15.6GB Sector size (logical/physical): 512B/512B Partition Table: gpt Disk Flags: Number Start End Size File system Name Flags 1 1049kB 1000MB 999MB fat32 boot, esp 2 1000MB 13.6GB 12.6GB ext4 3 13.6GB 15.6GB 2000MB linux-swap(v1) (parted) One of the selling features of the parted program is that it allows you to modify existing partition sizes, so you can easily shrink or grow partitions on the drive. Note: partprobe utility. The partprobe command triggers the Linux system to reread the partition table for a specific disk. While not necessary on a system with local hard drives, systems that share drives may need to use this if one system updates the partition table of a hard drive and the other system doesn't yet know about the update. There are also some graphical tools available to use if you're working from a graphical desktop environment. The most common of these is the GNOME Partition Editor, called GParted. Figure below shows an example of running the gparted command in an Ubuntu desktop environment. Figure: The GParted interface

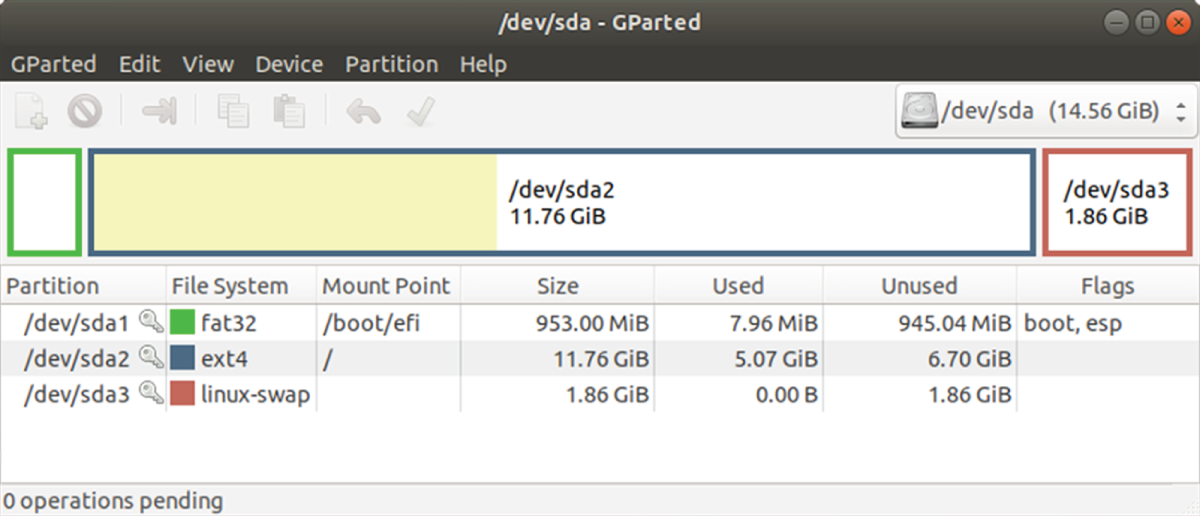

The gparted window displays each of the drives on a system one at a time, showing all of the partitions contained in the drive in a graphical layout. You right-click a partition to select options for mounting or unmounting, formatting, deleting, or resizing the partition. Although it's certainly possible to interact with a drive as a raw device, that's not usually how Linux applications work. There's a lot of work trying to read and write data to a raw device. Instead, Linux provides a method for handling all the dirty work for us, and we cover it in the next section. Understanding Filesystems Just like storing stuff in a closet, storing data in a Linux system requires some method of organization for it to be efficient. Linux utilizes filesystems to manage data stored on storage devices. A filesystem utilizes a method of maintaining a map to locate each file placed in the storage device. This and the following sections describe the Linux filesystem and show how you can locate files and folders contained in it. The Linux filesystem can be one of the most confusing aspects of working with Linux. Locating files on drives, CDs, and USB memory sticks can be a challenge at first. If you're familiar with how Windows manages files and folders, you know that Windows assigns drive letters to each storage device you connect to the system. For example, Windows uses C: for the main drive on the system or E: for a USB memory stick plugged into the system.
In Windows, you're used to seeing file paths such as C:\Users\rich\Documents\test.docx This path indicates that the file is located in the Documents folder for the rich user account, which is stored on the disk partition assigned the letter C (usually the first drive on the system). The Windows path tells you exactly what physical device the file is stored on. However, Linux doesn't use this method to reference files. It uses a virtual directory structure. The virtual directory contains file paths from all the storage devices installed on the system consolidated into a single directory structure. The Virtual Directory The Linux virtual directory structure contains a single base directory, called the root directory. The root directory lists files and folders beneath it based on the folder path used to get to them, similar to the way Windows does it. Note: root, that's not related to the root of the virtual directory, usually called root, but denoted as just a single forward slash (/). In fact, the root user account uses a special Home directory /root, making things even more confusing!
For example, a Linux file path could look like this: /home/rich/Documents/test.doc First, note that the Linux path uses forward slashes instead of the backward slashes that Windows uses. That's an important difference that trips many novice Linux administrators. As for the path itself, also notice that there's no drive letter. The path only indicates that the file test.doc is stored in the Documents folder for the user rich; it doesn't give you any clues as to which physical device contains the file. Linux places physical devices in the virtual directory using mount points. A mount point is a folder placeholder in the virtual directory that points to a specific physical device. In the Figure below, there are two drives used on the Linux system. The first drive on the left is associated with the root of the virtual directory. The second drive is mounted at the location /home, which is where the user folders are located. Once the second drive is mounted to the virtual directory, files and folders stored on the drive are available under the /home folder.

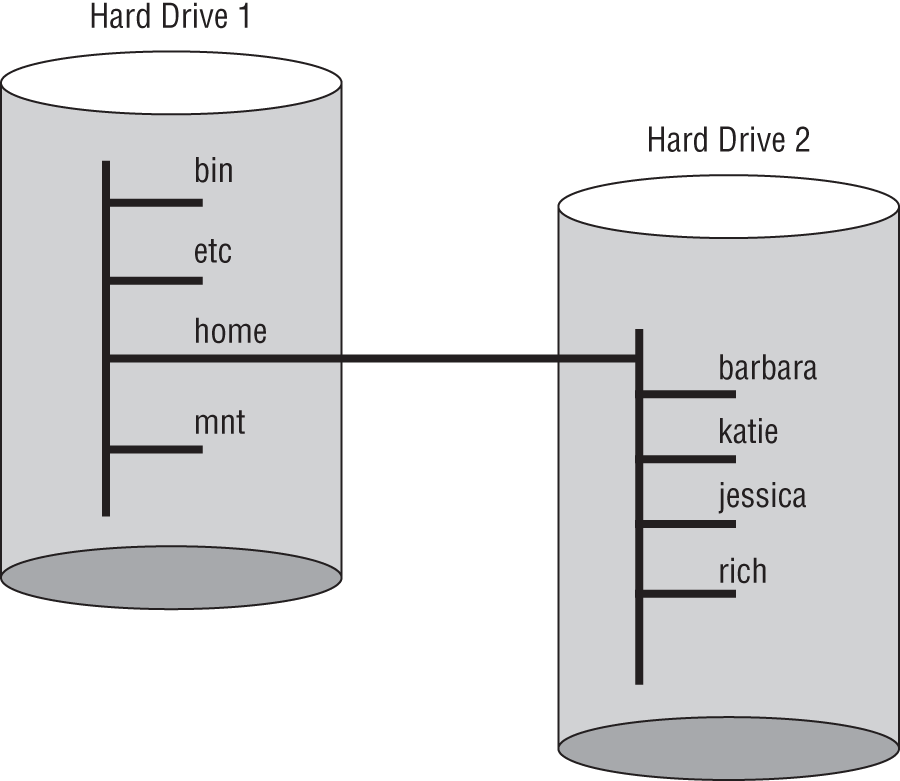

Figure: The Linux virtual directory structure divided between two drives
Since Linux stores everything in the virtual directory, it can get somewhat complicated. Fortunately, there's a standard format defined for the Linux virtual directory, called the Linux filesystem hierarchy standard (FHS). The FHS defines core folder names and locations that should be present on every Linux system and what type of data they should contain. TABLE: Common Linux FHS folders
Warning: - While the FHS helps standardize the Linux virtual filesystem, not all Linux distributions follow it completely. It's best to consult with your specific Linux distribution's documentation on how it manages files in the virtual directory structure. Maneuvering around the Filesystem Using the virtual directory makes it a breeze to move files from one physical device to another. You don't need to worry about drive letters, just the locations in the virtual directory: $ cp /home/rich/Documents/myfile.txt /media/usb In moving the file from the Documents folder to a USB memory stick, we used the full path in the virtual directory to both the file and the USB memory stick. This format is called an absolute path. The absolute path to a file always starts at the root folder (/) and includes every folder along the virtual directory tree to the file. Alternatively, you can use a relative path to specify a file location. The relative path to a file denotes the location of a file relative to your current location in the virtual directory tree structure. If you were already in the Documents folder, you'd just need to type $ cp myfile.txt /media/usb When Linux sees that the path doesn't start with a forward slash, it assumes the path is relative to the current directory. Formatting Filesystems Before you can assign a drive partition to a mount point in the virtual directory, you must format it using a filesystem. Linux supports numerous filesystem types, with each having different features and capabilities. The following sections discuss the different filesystems that Linux supports and how to format a drive partition for the filesystems. Common Filesystem Types Each operating system utilizes its own filesystem type for storing data on drives. Linux not only supports several of its own filesystem types, it also supports filesystems of other operating systems. The following sections cover the most common Linux and non-Linux filesystems that you can use in your Linux partitions. Linux Filesystems When you create a filesystem specifically for use on a Linux system, there are six main filesystems that you can choose from: btrfs: A newer, high-performance filesystem that supports files up to 16 exbibytes (EiB) in size and a total filesystem size of 16EiB. It also can perform its own form of Redundant Array of Inexpensive Disks (RAID) as well as logical volume management (LVM). It includes additional advanced features such as built-in snapshots for backup, improved fault tolerance, and data compression on the fly. eCryptfs: The Enterprise Cryptographic File System (eCryptfs) applies a POSIX-compliant encryption protocol to data before storing it on the device. This provides a layer of protection for data stored on the device. Only the operating system that created the filesystem can read data from it. ext3: Also called ext3fs, this is a descendant of the original Linux ext filesystem. It supports files up to 2 tebibytes (TiB), with a total filesystem size of 16 TiB. It supports journaling as well as faster startup and recovery. ext4: Also called ext4fs, it's the current version of the original Linux filesystem. It supports files up to 16 TiB, with a total filesystem size of 1 EiB. It also supports journaling and utilizes improved performance features. XFS: A 64-bit high-performance journaling filesystem created by Silicon Graphics in 1993 and ported to Linux in 2001. It supports filesystems up to 8 exbibytes. swap: The swap filesystem allows you to create virtual memory for your system using space on a physical drive. The system can then swap data out of normal memory into the swap space, providing a method of adding additional memory to your system. This is not intended for storing persistent data. Most Linux distributions these days use the ext4fs filesystem as the default, although Red Hat has recently chosen the XFS filesystem as the default. Both filesystems provide journaling, which is a method of tracking data not yet written to the drive in a log file, called the journal. If the system fails before the data can be written to the drive, the journal data can be recovered and stored upon the next system boot. Non-Linux Filesystems One of the great features of Linux that makes it so versatile is its ability to read data stored on devices formatted for other operating systems, such as Apple and Microsoft. This feature makes it a breeze to share data between different systems running different operating systems. Here's a list of common non-Linux filesystems that Linux can handle: CIFS: The Common Internet File System (CIFS) is a filesystem protocol created by Microsoft for reading and writing data across a network using a network storage device. It was released to the public for use on all operating systems. HFS: The Hierarchical File System (HFS) was developed by Apple for its macOS systems. Linux can also interact with the more advanced HFS+ filesystem. ISO-9660: The ISO-9660 standard is used for creating filesystems on CD-ROM devices. NFS: The Network File System (NFS) is an open source standard for reading and writing data across a network using a network storage device. NTFS: The New Technology File System (NTFS) is the filesystem used by the Microsoft NT operating system and subsequent versions of Windows. Linux can read and write data on an NTFS partition as of kernel 2.6.x. SMB: The Server Message Block (SMB) filesystem was created by Microsoft as a proprietary filesystem used for network storage and interacting with other network devices (such as printers). Support for SMB allows Linux clients and servers to interact with Microsoft clients and servers on a network. UDF: The Universal Disc Format (UDF) is commonly used on DVD-ROM devices for storing data. Linux can both read data from a DVD and write data to a DVD using this filesystem. VFAT: The Virtual File Allocation Table (VFAT) is an extension of the original Microsoft File Allocation Table (FAT) filesystem. It's not commonly used on drives but is commonly used for removable storage devices such as USB memory sticks. ZFS: The Zettabyte File System (ZFS) was created by Sun Microsystems (now part of Oracle) for its Unix workstations and servers. Another high-performance filesystem, it has features similar to the btrfs Linux filesystem. It's generally not recommended to format a partition using a non-Linux filesystem if you plan on using the drive for only Linux systems. Linux supports these filesystems mainly as a method for sharing data with other operating systems. Creating Filesystems The Swiss Army knife for creating filesystems in Linux is the mkfs program. The mkfs program is actually a front end to several individual tools for creating specific filesystems, such as the mkfs.ext4 program for creating ext4 filesystems. The beauty of the mkfs program is that you only need to remember one program name to create any type of filesystem on your Linux system. Just use the -t option to specify the filesystem type: $ sudo mkfs -t ext4 /dev/sdb1 mke2fs 1.44.1 (24-Mar-2018) Creating filesystem with 2621440 4k blocks and 655360 inodes Filesystem UUID: f9137b26-0caf-4a8a-afd0-392002424ee8 Superblock backups stored on blocks: 32768, 98304, 163840, 229376, 294912, 819200, 884736, 1605632 Allocating group tables: done Writing inode tables: done Creating journal (16384 blocks): done Writing superblocks and filesystem accounting information: done
After you specify the -t option, just specify the partition device filename for the partition you want to format on the command line. Notice that the mkfs program does a lot of things behind the scenes when formatting the filesystem. Each filesystem has its own method for indexing files and folders and tracking file access. The mkfs program creates all the index files and tables necessary for the specific filesystem. Warning: - Be very careful when specifying the partition device filename. When you format a partition, any existing data on the partition is lost. If you specify the wrong partition name, you could lose important data or make your Linux system unable to boot. Mounting Filesystems Once you've formatted a drive partition with a filesystem, you can add it to the virtual directory on your Linux system. This process is called mounting the filesystem. You can either manually mount the partition in the virtual directory structure from the command line or allow Linux to automatically mount the partition at boot time. The following sections walk through both of these methods. Manually Mounting Devices To temporarily mount a filesystem to the Linux virtual directory, use the mount command. The basic format for the mount command is mount -t fstype device mountpoint Use the -t command-line option to specify the filesystem type of the device: $ sudo mount -t ext4 /dev/sdb1 /media/usb1 If you specify the mount command with no parameters, it displays all of the devices currently mounted on the Linux system. Be prepared for a long output, though, as most Linux distributions mount lots of virtual devices in the virtual directory to provide information about system resources. List: Output from the mount command $ mount ... /dev/sda2 on / type ext4 (rw,relatime,errors=remount-ro,data=ordered) /dev/sda1 on /boot/efi type vfat (rw,relatime,fmask=0077,dmask=0077,codepage=437,iocharset=iso8859 -1,shortname=mixed,errors=remount-ro) /dev/sdb1 on /media/usb1 type ext4 (rw,relatime,data=ordered) /dev/sdb2 on /media/usb2 type ext4 (rw,relatime,data=ordered) rich@rich-TestBox2:~$
To save space, we trimmed down the output from the mount command to show only the physical devices on the system. The main hard drive device (/dev/sda) contains two partitions, and the USB memory stick device (/dev/sdb) also contains two partitions. Note: mount command uses the -o option to specify additional features of the filesystem, such as mounting it in read-only mode, user permissions assigned to the mount point, and how data is stored on the device. These options are shown in the output of the mount command. Usually you can omit the -o option to use the system defaults for the new mount point. The downside to the mount command is that it only temporarily mounts the device in the virtual directory. When you reboot the system, you have to manually mount the devices again. This is usually fine for removable devices, such as USB memory sticks, but for more permanent devices it would be nice if Linux could mount them for us automatically. Fortunately for us, Linux can do just that. To remove a mounted drive from the virtual directory, use the umount command (note the missing n). You can remove the mounted drive by specifying either the device filename or the mount point directory. Automatically Mounting Devices For permanent storage devices, Linux maintains the /etc/fstab file to indicate which drive devices should be mounted to the virtual directory at boot time. The /etc/fstab file is a table that indicates the drive device file (either the raw file or one of its permanent udev filenames), the mount point location, the filesystem type, and any additional options required to mount the drive. List: The /etc/fstab file $ cat /etc/fstab # /etc/fstab: static file system information. # Use 'blkid' to print the universally unique identifier for a # device; this may be used with UUID= as a more robust way to name devices # that works even if disks are added and removed. See fstab(5). # <file system> <mount point> <type> <options> <dump> <pass> # / was on /dev/sda2 during installation UUID=46a8473c-8437-4d5f-a6a1-6596c492c3ce / ext4 errors=remount-ro 0 1 # /boot/efi was on /dev/sda1 during installation UUID=864B-62F5 /boot/efi vfat umask=0077 0 1 # swap was on /dev/sda3 during installation UUID=8673447a-0227-47d7-a67a-e6b837bd7188 none swap sw 0 0
This /etc/fstab file references the devices by their udev UUID value, ensuring that the correct drive partition is accessed no matter the order in which it appears in the raw device table. The first partition is mounted at the /boot/efi mount point in the virtual directory. The second partition is mounted at the root (/) of the virtual directory, and the third partition is mounted as a swap area for virtual memory. You can manually add devices to the /etc/fstab file so that they are mounted automatically when the Linux system boots. However, if they don't exist at boot time, that will generate a boot error.
Tip: /etc/fstab file, systemd still manages these filesystems. The mount points listed in /etc/fstab are converted into native units when either the server is rebooted or systemd is reloaded. In fact, using /etc/fstab for persistent filesystems is the preferred method over manually creating a mount unit file. For more information on this process, type man systemd-fstab-generator at the command line. Note: /etc/crypttab file and will be mounted automatically at boot time. While the system is running, you can also view all of the currently mounted devices, whether they were mounted automatically by the system or manually by users, by viewing the /etc/mtab file. Managing Filesystems Once you've created a filesystem and mounted it to the virtual directory, you may have to manage and maintain it to keep things running smoothly. The following sections walk through some of the Linux utilities available for managing the filesystems on your Linux system. Retrieving Filesystem Stats As you use your Linux system, there's no doubt that at some point you'll need to monitor disk performance and usage. There are a few different tools available to help you do that: df displays disk usage by partition. du displays disk usage by directory, good for finding users or applications that are taking up the most disk space. iostat displays a real-time chart of disk statistics by partition. lsblk displays current partition sizes and mount points.
A quick way to get a snapshot of the disk space situation on your Linux system is to use the df and du commands: $ df -t xfs -h
Filesystem Size Used Avail Use% Mounted on /dev/mapper/rl-root 15G 6.6G 7.7G 47% / /dev/sda1 1014M 351M 664M 35% /boot $ sudo du -d 1 318632 ./boot 0 ./dev 0 ./proc 9448 ./run 0 ./sys 32400 ./etc 48 ./root 704712 ./var 5711056 ./usr 114656 ./home 369421 ./media 0 ./mnt 18856 ./opt 0 ./srv 12 ./tmp 7279241 .
The df command shows the overall disk space available on the system, and the du command helps show what directories have the most data in them. In addition to these tools, the /proc and /sys folders are special filesystems that the kernel uses for recording system statistics. Two directories that can be useful when working with filesystems are the /proc/partitions and /proc/mounts folders, which provide information on system partitions and mount points, respectively. Additionally, the /sys/block folder contains separate folders for each mounted drive, showing partitions and kernel-level stats.
Tip: lssci command to display information about the hard drives connected to the SCSI controllers, or for systems that use fiber-channel networks to connect a storage area network (SAN) to your Linux system, the fcstat command is very useful. inode is an entry in the index table that tracks files stored on the filesystem. If the filesystem runs out of inode entries in the table, you can't create any more files, even if there's available space on the drive. Using the -i option with the df command will show you the percentage of inodes used on a filesystem and can be a lifesaver. Filesystem Tools Linux uses the e2fsprogs package of tools to provide utilities for working with ext filesystems (such as ext3 and ext4).
The most popular tools in the e2fsprogs package are as follows: blkid displays information about block devices, such as storage drives. chattr changes file attributes on the filesystem. debugfs manually views and modifies the filesystem structure, such as undeleting a file or extracting a corrupted file. dumpe2fs displays block and superblock group information. e2label changes the label on the filesystem. resize2fs expands or shrinks a filesystem. tune2fs modifies filesystem parameters. These tools help you fine-tune parameters on an ext filesystem, but if corruption occurs on the filesystem, you'll need the fsck program. The XFS filesystem also has a set of tools available for tuning the filesystem. Here are the two that you'll most likely run across: xfs_admin displays or changes filesystem parameters such as the label or UUID assigned. xfs_info displays information about a mounted filesystem, including the block sizes and sector sizes as well as label and UUID information.
If you're using the btrfs filesystem, the btrfs command provides access to several utilities for managing the filesystem: balance balances filesystem chunks across multiple devices check performs an offline check of a btrfs filesystem device provides device management for btrfs filesystems by adding or deleting a physical device. filesystem provides filesystem management utilities for an existing btrfs filesystem, such as displaying information and resizing filesystems. quota allows you to set quotas on btrfs filesystems. restore allows you to restore files from a damaged btrfs filesystem.
While these ext, XFS, and btrfs tools are useful, they can't help fix things if the filesystem itself has errors. For that, the fsck program is the tool to use: $ sudo fsck -f /dev/sdb1 fsck from util-linux 2.31.1 e2fsck 1.44.1 (24-Mar-2018) Pass 1: Checking inodes, blocks, and sizes Pass 2: Checking directory structure Pass 3: Checking directory connectivity Pass 4: Checking reference counts Pass 5: Checking group summary information /dev/sdb1: 11/655360 files (0.0% non-contiguous), 66753/2621440 blocks Note: fsck does not repair XFS filesystems. For now you'll need to use the xfs_repair tool. The fsck program is a front end to several different programs that check the various filesystems to match the index against the actual files stored in the filesystem. If any discrepancies occur, run the fsck program in repair mode, and it will attempt to reconcile the discrepancies and fix the filesystem. Storage Alternatives Standard partition layouts on storage devices do have their limitations. Once you create and format a partition, it's not easy making it larger or smaller. Individual partitions are also susceptible to disk failures, in which case all of the data stored in the partition will be lost. To accommodate more dynamic storage options, as well as fault-tolerance features, Linux has incorporated a few advanced storage management techniques. The following sections cover three popular techniques. Multipath The Linux kernel now supports Device Mapper Multipathing (DM-multipathing), which allows you to configure multiple paths between the Linux system and network storage devices. Multipathing aggregates the paths providing for increased throughout while all of the paths are active or for fault tolerance if one of the paths becomes inactive.
Linux DM-multipathing includes the following tools: dm-multipath: The kernel module that provides multipath support multipath: A command-line command for viewing multipath devices multipathd: A background process for monitoring paths and activating/deactivating paths kpartx: A command-line tool for creating device entries for multipath storage devices
The DM-multipath feature uses the dynamic /dev/mapper device file folder in Linux. Linux creates a /dev/mapper device file named mpathN for each new multipath storage device you add to the system, where N is the number of the multipath drive. That file acts as a normal device file to the Linux system, allowing you to create partitions and filesystems on the multipath device just as you would a normal drive partition. Logical Volume Manager The Linux Logical Volume Manager (LMV) also utilizes the /dev/mapper dynamic device folder to allow you to create virtual drive devices. You can aggregate multiple physical drive partitions into virtual volumes, which you then treat as a single partition on your system. The benefit of LVM is that you can add and remove physical partitions as needed to a logical volume, expanding and shrinking the logical volume as needed. Using LVM is somewhat complicated. Figure demonstrates the layout for an LVM environment. Figure11.3 The Linux LVM layout

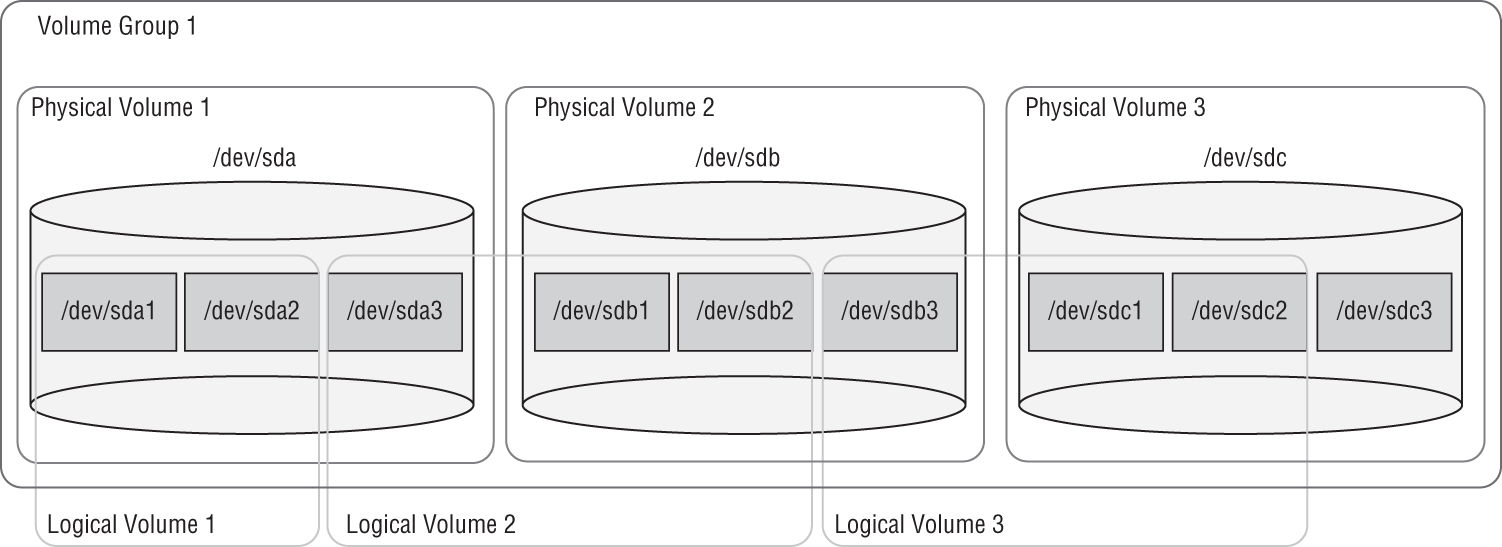

In the example shown in the above Figure, three physical drives each contain three partitions. The first logical volume consists of the first two partitions of the first drive. The second logical volume spans drives, combining the third partition of the first drive with the first and second partitions of the second drive to create one volume. The third logical volume consists of the third partition of the second drive and the first two partitions of the third drive. The third partition of the third drive is left unassigned and can be added later to any of the logical volumes when needed. For each physical partition, you must mark the partition type as the Linux LVM filesystem type in fdisk or gdisk. Then, you must use several LVM tools to create and manage the logical volumes. TABLE: Linux LVM commands
The logical volumes create entries in the /dev/mapper folder that represent the LVM device you can format with a filesystem and use like a normal partition. List: Creating, formatting, and mounting a logical volume $ sudo gdisk /dev/sdb Command (? for help): n Partition number (1-128, default 1): 1 First sector (34-10485726, default = 2048) or {+-}size{KMGTP}: Last sector (2048-10485726, default = 10485726) or {+-}size{KMGTP}: Current type is 'Linux filesystem' Hex code or GUID (L to show codes, Enter = 8300): 8e00 Changed type of partition to 'Linux LVM' Command (? for help): w Final checks complete. About to write GPT data. THIS WILL OVERWRITE EXISTING PARTITIONS!! Do you want to proceed? (Y/N): Y OK; writing new GUID partition table (GPT) to /dev/sdb. The operation has completed successfully. $ sudo pvcreate /dev/sdb1 Physical volume "/dev/sdb1" successfully created. $ sudo vgcreate newvol /dev/sdb1 Volume group "newvol" successfully created $ sudo lvcreate -l 100%FREE -n lvdisk newvol Logical volume "lvdisk" created. $ sudo mkfs -t ext4 /dev/mapper/newvol-lvdisk
Creating filesystem with 1309696 4k blocks and 327680 inodes Filesystem UUID: 06c871bc-2eb6-4696-896f-240313e5d4fe 32768, 98304, 163840, 229376, 294912, 819200, 884736 Allocating group tables: done Writing inode tables: done $ sudo mkdir /media/newdisk $ sudo mount /dev/mapper/newvol-lvdisk /media/newdisk $ cd /media/newdisk $ ls -al total 24 drwxr-xr-x 3 root root 4096 Jan 10 10:17 . drwxr-xr-x 4 root root 4096 Jan 10 10:18 .. drwx------ 2 root root 16384 Jan 10 10:17 lost+found
Although the initial setup of a LVM is complicated, it does provide great benefits. If you run out of space in a logical volume, just add a new disk partition to the volume. Using RAID Technology Redundant Array of Inexpensive Disks (RAID) technology has changed the data storage environment for most data centers. RAID technology allows you to improve data access performance and reliability as well as implement data redundancy for fault tolerance by combining multiple drives into one virtual drive. There are several versions of RAID commonly used:
RAID-0: Disk striping, spreads data across multiple disks for faster access. RAID-1: Disk mirroring duplicates data across two drives. RAID-10: Disk mirroring and striping provides striping for performance and mirroring for fault tolerance. RAID-4: Disk striping with parity adds a parity bit stored on a separate disk so that data on a failed data disk can be recovered. RAID-5: Disk striping with distributed parity adds a parity bit to the data stripe so that it appears on all of the disks so that any failed disk can be recovered. RAID-6: Disk striping with double parity stripes both the data and the parity bit so two failed drives can be recovered.
The downside is that hardware RAID storage devices can be somewhat expensive (despite what the I stands for) and are often impractical for most home uses. Because of that, Linux has implemented a software RAID system that can implement RAID features on any disk system. The mdadm utility allows you to specify multiple partitions to be used in any type of RAID environment. The RAID device appears as a single device in the /dev/mapper folder, which you can then partition and format to a specific filesystem. You can view the current status of the kernel's RAID state by displaying the contents of the /proc/mdstat file. Encrypting Partitions These days data security is a must in most business environments. With the popularity of portable laptops and external storage devices, often sensitive corporate (and sometimes personal) data is easily available for thieves to steal. One line of defense to help protect data is encryption. Linux provides utilities to encrypt individual files, but that can get tedious. A better solution is to encrypt the entire partition where the data is stored. A popular tool for that is the Linux Unified Key Setup (LUKS). The LUKS system was created in 2004 by Clemens Fruhwirth specifically for encrypting Linux partitions. The core utility in LUKS is the cryptsetup utility. It allows you to create encrypted partitions, then open them to make them available for formatting and mounting in the Linux virtual directory.
The first step is to format a partition to use for encryption, using the luksFormat option: $ sudo cryptsetup -y -v luksFormat /dev/sdb1 WARNING! This will overwrite data on /dev/sdb1 irrevocably. Are you sure? (Type 'yes' in capital letters): YES Enter passphrase for /dev/sdb1: Verify passphrase: Key slot 0 created. Command successful.
In this step you must specify the passphrase required to open the encrypted partition. After you create the encrypted partition, you can make it available for use by using the luksOpen option: $ sudo cryptsetup -v luksOpen /dev/sdb1 safedata Key slot 0 unlocked.
The luksOpen option requires that you know the passphrase used to encrypt the partition. The first parameter after the luksOpen option specifies the physical partition, and the second parameter defines a name used to map the opened partition to a virtual device in the /dev/mapper directory: $ ls /dev/mapper -l crw-------. 1 root root 10,236 Dec 22 08:29 control lrwxrwxrwx. 1 root root 7 Dec 22 08:29 rl-root -> ../dm-0 lrwxrwxrwx. 1 root root 7 Dec 22 08:29 rl-swap -> ../dm-1 lrwxrwxrwx. 1 root root 7 Dec 22 09:02 safedata -> ../dm-2
The /dev/mapper/safedata device file now references the opened encrypted partition and can be handled as a normal Linux partition: $ sudo mkfs -t ext4 /dev/mapper/safedata mke2fs 1.45.6 (20-Mar-2020)
Creating filesystem with 257792 4k blocks and 64512 inodes Filesystem UUID: e2f03597-0108-48b3-a66b-d58fdd9c427f Superblock backups stored on blocks: 32768, 98304, 163840, 229376 Allocating group tables: done Writing inode tables: done Creating journal (4096 blocks): done Writing superblocks and filesystem accounting information: done $ sudo mount /dev/mapper/safedata /mnt/mydata After you create the filesystem and mount the partition, you can create, modify, and delete files and directories in the /mnt/mydata directory just as you would any other Linux filesystem.
To close an encrypted partition so that it can't be accessed, use the luksClose command option: $ sudo cryptsetup -v luksClose /dev/mapper/safedata $ ls /dev/mapper -l crw-------. 1 root root 10, 236 Dec 22 08:29 control lrwxrwxrwx. 1 root root 7 Dec 22 08:29 rl-root -> ../dm-0 lrwxrwxrwx. 1 root root 7 Dec 22 08:29 rl-swap -> ../dm-1
When you close the encrypted partition, Linux removes it from the /dev/mapper directory, making it inaccessible. To mount the partition again, you would need to use the luksOpen option in the cryptsetup command and provide the passphrase. EXERCISE: Experimenting with Filesystems This exercise will demonstrate how to partition, format, and mount a drive for use on a Linux system using a USB memory stick. You'll need to have an empty USB memory stick available for this exercise. All data will be deleted from the USB memory stick.
There are a host of tools available to help you manage and maintain filesystems. The df and du command-line commands are useful for checking disk space for partitions and the virtual directory, respectively. The fsck utility is a vital tool for repairing corrupted partitions and is run automatically at boot time against all partitions automatically mounted in the virtual directory. Linux also supports alternative solutions for storage, such as multipath I/O for fault tolerance, logical volumes (in which you can add and remove physical partitions), software RAID technology, and the ability to create encrypted partitions. Important Exam Topics: 1. Describe how Linux works with storage devices. - Linux creates raw device files in the /dev folder for each storage device you connect to the system. Linux also assigns a raw device file for each partition contained in the storage device. 2. Explain how to prepare a partition to be used in the Linux virtual directory. - To use a storage device partition in the virtual directory, it must be formatted with a filesystem that Linux recognizes. Use the mkfs command to format the partition. Linux recognizes several different filesystem types, including ext3, ext4, btrfs, xfs, and zfs. 3. Describe how Linux can implement a fault-tolerance storage configuration. - Linux supports two types of fault-tolerance storage methods. The multipath method uses the mdadm utility to create two paths to the same storage device. If both paths are active, Linux aggregates the path speed to increase performance to the storage device. If one path fails, Linux automatically routes traffic through the active path. Linux can also use standard RAID technology to support RAID levels 0, 1, 10, 4, 5, or 6 for fault tolerance and high-performance storage. 4. Describe how Linux uses virtual storage devices. - Linux uses the logical volume manager (LVM) to create a virtual storage device from one or more physical devices. The pvcreate command defines a volume from a physical partition, and the vgcreate command creates a volume group from one or more virtual volumes. The lvcreate command then creates a logical volume in the /dev/mapper folder from one or more partitions in the volume group. This method allows you to add or remove drives in a filesystem to grow or shrink the filesystem area as needed. 5. List some of the filesystem tools available in Linux. - The df tool allows you to analyze the available and used space in drive partitions, whereas the du tool allows you to analyze space in the virtual directory structure. The e2fsprogs package provides a wealth of tools for tuning ext filesystems, such as debugfs, dumpe2fs, tune2fs, and blkid. Linux also provides the xfs_admin and xfs_info tools for working with xfs filesystems. The fsck tool is available for repairing corrupted filesystems and can repair most cases of file corruption.
