A Simple Guide To Displaying Information

Frequency Tables
Frequency tables show how frequently each unique value appears in the set. A relative frequency table is one that shows the proportions of each unique value compared to the entire set. Relative frequencies are given as percentages; however, the total percent for a relative frequency table will not necessarily equal 100 percent due to rounding.

An example of a frequency table with relative frequencies is below.




Interpretation of Graphs

Circle Graphs
Circle graphs, also known as pie charts, provide a visual depiction of the relationship of each type of data compared to the whole set of data. The circle graph is divided into sections by drawing radii to create central angles whose percentage of the circle is equal to the individual data's percentage of the whole set. Each 1% of data is equal to 3.6° in the circle graph. Therefore, data represented by a 90° section of the circle graph makes up 25% of the whole. When complete, a circle graph often looks like a pie cut into uneven wedges.

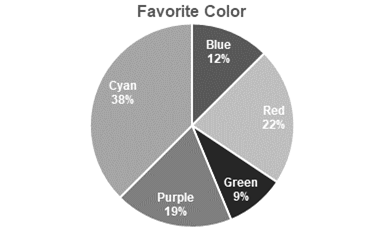

The pie chart below shows the data from the frequency table referenced earlier where people were asked their favorite color.


Pictographs
A pictograph is a graph, generally in the horizontal orientation, that uses pictures or symbols to represent the data. Each pictograph must have a key that defines the picture or symbol and gives the quantity each picture or symbol represents. Pictures or symbols on a pictograph are not always shown as whole elements. In this case, the fraction of the picture or symbol shown represents the same fraction of the quantity a whole picture or symbol stands for.

For example, a row with  ears of corn, where each ear of corn represents 100 stalks of corn in a field, would equal
 stalks of corn in the field.

Line Graphs
Line graphs have one or more lines of varying styles (solid or broken) to show the different values for a set of data. The individual data are represented as ordered pairs, much like on a Cartesian plane. In this case, the x- and y-axes are defined in terms of their units, such as dollars or time. The individual plotted points are joined by line segments to show whether the value of the data is increasing (line sloping upward), decreasing (line sloping downward) or staying the same (horizontal line).

Multiple sets of data can be graphed on the same line graph to give an easy visual comparison.

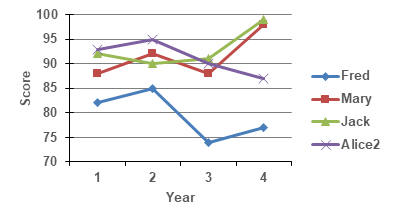

An example of this would be graphing achievement test scores for different groups of students over the same time period to see which group had the greatest increase or decrease in performance from year-to-year (as shown below).


Line Plots
A line plot, also known as a dot plot, has plotted points that are not connected by line segments. In this graph, the horizontal axis lists the different possible values for the data, and the vertical axis lists the number of times the individual value occurs. A single dot is graphed for each value to show the number of times it occurs. This graph is more closely related to a bar graph than a line graph. Do not connect the dots in a line plot or it will misrepresent the data.

Stem and Leaf Plots
A stem and leaf plot is useful for depicting groups of data that fall into a range of values. Each piece of data is separated into two parts: the first, or left, part is called the stem; the second, or right, part is called the leaf. Each stem is listed in a column from smallest to largest. Each leaf that has the common stem is listed in that stem's row from smallest to largest. For example, in a set of two-digit numbers, the digit in the tens place is the stem, and the digit in the ones place is the leaf. With a stem and leaf plot, you can easily see which subset of numbers (10s, 20s, 30s, etc.) is the largest. This information is also readily available by looking at a histogram, but a stem and leaf plot also allows you to look closer and see exactly which values fall in that range.

Using all of the test scores from above, we can assemble a stem and leaf plot like the one below.
Test Scores


Bar Graphs
A bar graph is one of the few graphs that can be drawn correctly in two different configurations – both horizontally and vertically. A bar graph is similar to a line plot in the way the data is organized on the graph. Both axes must have their categories defined for the graph to be useful. Rather than placing a single dot to mark the point of the data's value, a bar, or thick line, is drawn from zero to the exact value of the data, whether it is a number, percentage, or other numerical value. Longer bar lengths correspond to greater data values. To read a bar graph, read the labels for the axes to find the units being reported. Then look where the bars end in relation to the scale given on the corresponding axis and determine the associated value.
The bar chart below represents the responses from our favorite color survey.


Histograms
At first glance, a histogram looks like a vertical bar graph. The difference is that a bar graph has a separate bar for each piece of data and a histogram has one continuous bar for each range of data. For example, a histogram may have one bar for the range 0–9, one bar for 10–19, etc. While a bar graph has numerical values on one axis, a histogram has numerical values on both axes. Each range is of equal size, and they are ordered left to right from lowest to highest. The height of each column on a histogram represents the number of data values within that range. Like a stem and leaf plot, a histogram makes it easy to glance at the graph and quickly determine which range has the greatest quantity of values. A simple example of a histogram is below.


Bivariate Data
Bivariate data is simply data from two different variables. (The prefix bi- means two.)
In a scatter plot, each value in the set of data is plotted on a grid similar to a Cartesian plane, where each axis represents one of the two variables. By looking at the pattern formed by the points on the grid, you can often determine whether or not there is a relationship between the two variables, and what that relationship is, if it exists. The variables may be directly proportionate, inversely proportionate, or show no proportion at all.

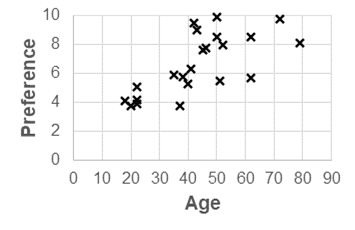

It may also be possible to determine if the data is linear, and if so, to find an equation to relate the two variables. The following scatter plot shows the relationship between preference for brand 'A' and the age of the consumers surveyed.


Scatter Plots
Scatter plots are also useful in determining the type of function represented by the data and finding the simple regression. Linear scatter plots may be positive or negative.
Nonlinear scatter plots are generally exponential or quadratic. Below are some common types of scatter plots:









5-Number Summary
The 5-number summary of a set of data gives a very informative picture of the set. The five numbers in the summary include the minimum value, maximum value, and the three quartiles. This information gives the reader the range and median of the set, as well as an indication of how the data is spread about the median.

Box and Whisker Plots
A box-and-whisker plot is a graphical representation of the 5-number summary. To draw a box-and-whiskers plot, plot the points of the 5-number summary on a number line. Draw a box whose ends are through the points for the first and third quartiles. Draw a vertical line in the box through the median to divide the box in half. Draw a line segment from the first quartile point to the minimum value, and from the third quartile point to the maximum value.


68-95-99.7 Rule
The 68–95–99.7 rule describes how a normal distribution of data should appear when compared to the mean. This is also a description of a normal bell curve. According to this rule, 68 percent of the data values in a normally distributed set should fall within one standard deviation of the mean (34 percent above and 34 percent below the mean), 95 percent of the data values should fall within two standard deviations of the mean (47.5 percent above and 47.5 percent below the mean), and 99.7 percent of the data values should fall within three standard deviations of the mean, again, equally distributed on either side of the mean.
This means that only 0.3 percent of all data values should fall more than three standard deviations from the mean. On the graph below, the normal curve is centered on the y-axis. The x-axis labels are how many standard deviations away from the center you are. Therefore, it is easy to see how the 68-95-99.7 rule can apply.
