GMAT Math: Geometry Practice Test
Fast practice, instant feedback. Timer auto-submits when time’s up.
Avg score: 82% • Most missed: “If the line through the points (–8, k) and (2, 1) is parallel to the line throug…”
GMAT Math: Geometry Practice Test
Time left 00:00
25 Questions

1. images

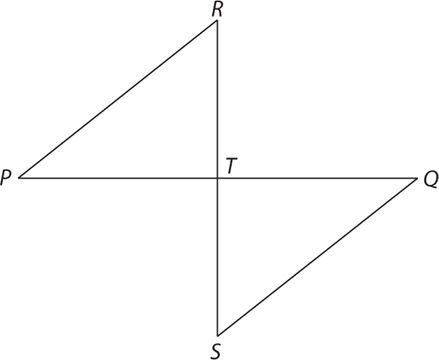

In the preceding figure, T is the midpoint of images. What is the length of images? (1)∠R ≅ ∠S (2)PR = 10
2. In a circle whose radius is 17 centimeters, a chord is 8 centimeters from the center of the circle. What is the chord’s length in centimeters?
3. images

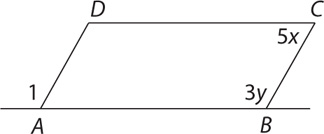

Is x > y? (1)ABCD is a parallelogram. (2)m∠DAB=50°
4. Disregarding units, if a sphere’s surface area equals its volume, what is the sphere’s diameter?
5. images
Is x > y? (1)ABCD is a parallelogram. (2)m∠DAB=50°
6. images
Is the measure of ∠C greater than the measure of ∠A? (1)images (2)m∠DEB = 58°
7. images

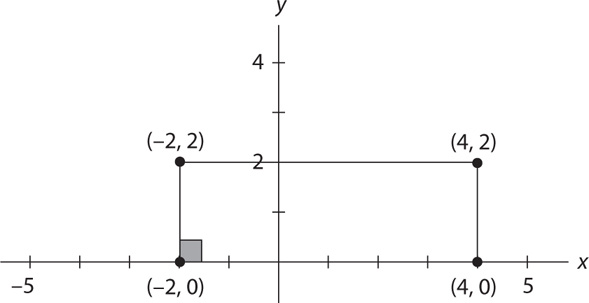

The preceding diagram shows the rectangle with vertices (–2, 0), (–2, 2), (4, 0), and (4, 2). What is the probability the x-coordinate of a randomly selected point in the rectangle is negative?
8. images
Is the measure of ∠C greater than the measure of ∠A? (1)images (2)m∠DEB = 58°
9. images

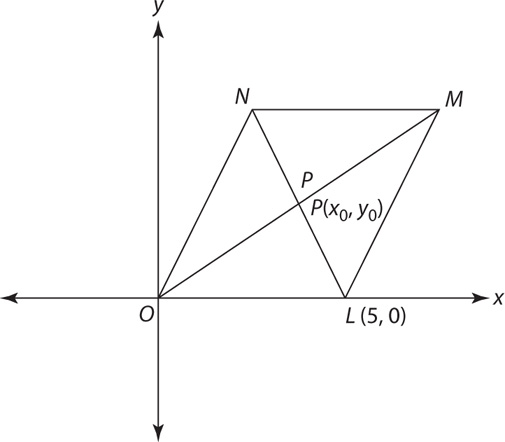

In the preceding parallelogram LMNO, P is the point of intersection of the diagonals. What is the value of x0? (1)Point M has coordinates (9, 10). (2)Point N has coordinates (4, 10).
10. images

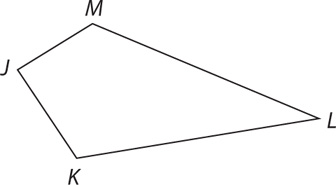

For the preceding quadrilateral, what is m∠J + m∠K + m∠M in degrees? (1)m∠L = 31° (2)images
11. If the line through the points (–8, k) and (2, 1) is parallel to the line through the points (11, –1) and (7, k + 1), what is the value of k?
12. images

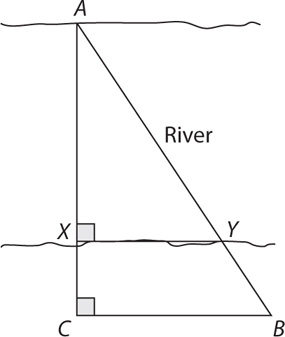

The preceding diagram shows the method that a park ranger is using to estimate the width of a river. If XC = 30 yards, BC = 80 yards, and XY = 60 yards, what is the river’s width in yards?
13. images

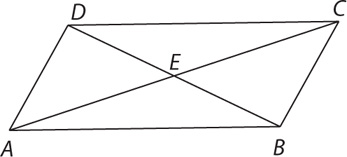

The preceding quadrilateral ABCD is a parallelogram. What is the length of images? (1)EC = 4 (2)AB = 6
14. images

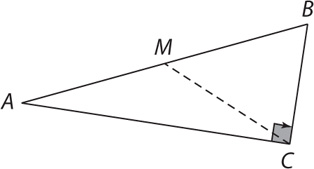

In the preceding right triangle ABC, images is the median to the hypotenuse. If AC is 48 inches, BC is 20 inches, and AB is 52 inches, what is the measure in inches of images?
15. Disregarding units, if a sphere’s surface area equals its volume, what is the sphere’s diameter?
16. images

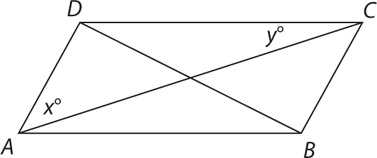

In the preceding figure, what is the ratio of x to y? (1)ABCD is a parallelogram. (2)images
17. images
The grain storage bin shown in the preceding diagram has a right cylindrical top and a right conical base. The bin’s overall height is 25 feet. If the bin’s cylindrical top has radius 7 feet and its conical base has height 12 feet, what is the storage bin’s approximate capacity in cubic feet?
18. images
The grain storage bin shown in the preceding diagram has a right cylindrical top and a right conical base. The bin’s overall height is 25 feet. If the bin’s cylindrical top has radius 7 feet and its conical base has height 12 feet, what is the storage bin’s approximate capacity in cubic feet?
19. images
The preceding diagram shows a figure composed of right triangle ABC adjacent to semicircle images. If AB = OC = x, what is the perimeter of the figure?

images
20. images

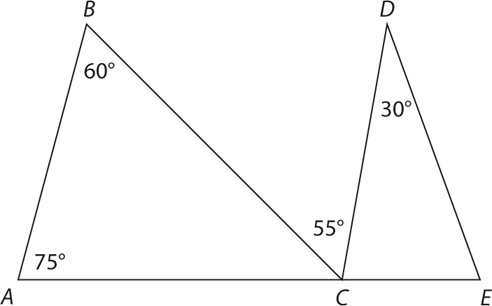

In the preceding figure with the measures of the angles as shown, what is the measure of images?
21. In the (x, y) coordinate plane, (u, v) and (u + h, v + k) are two points on the line y = 2x + 5. What is the value of k? (1)h = 3 (2)k = 2h
22. images
In the preceding figure, T is the midpoint of images. What is the length of images? (1)∠R ≅ ∠S (2)PR = 10
23. In the (x, y) coordinate plane, (u, v) and (u + h, v + k) are two points on the line y = 2x + 5. What is the value of k? (1)h = 3 (2)k = 2h
24. images

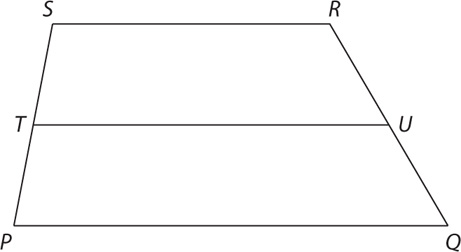

In the preceding trapezoid PQRS, images is the line segment connecting the midpoints of the two nonparallel sides images and images. If PQ = 11 and TU = 7, what is the measure of images?
25. images
The preceding diagram shows a figure composed of right triangle ABC adjacent to semicircle images. If AB = OC = x, what is the perimeter of the figure?

images
