These 400+ 5th Grade science questions have been taken from the following state and regional science exams in the United States: AIMS-Arizona's Instrument to Measure Standards, Alaska Department of Education & Early Development, California Standards Test, MCAS-Massachusetts Comprehensive Assessment System, Maryland School Assessment, MEA-Maine Educational Assessment, MEAP-Michigan Educational Assessment Program, NAEP-National Assessment of Educational Progress, North Carolina End-of-Grade Assessment, New York State Educational Department Regents exams, Ohio Achievement Tests, TAKS-Texas... Show more

These 400+ 5th Grade science questions have been taken from the following state and regional science exams in the United States:
AIMS-Arizona's Instrument to Measure Standards, Alaska Department of Education & Early Development, California Standards Test, MCAS-Massachusetts Comprehensive Assessment System, Maryland School Assessment, MEA-Maine Educational Assessment, MEAP-Michigan Educational Assessment Program, NAEP-National Assessment of Educational Progress, North Carolina End-of-Grade Assessment, New York State Educational Department Regents exams, Ohio Achievement Tests, TAKS-Texas Assessment of Knowledge and Skills, Virginia Standards of Learning, & Washington MSP.


Show less

5th Grade Science Review (With Diagrams)

Time left 00:00

25 Questions

1. The diagram below shows the life cycle of an organism.

Which of the following organisms has a life cycle like the one shown in the diagram?

a froga birda butterflya snake

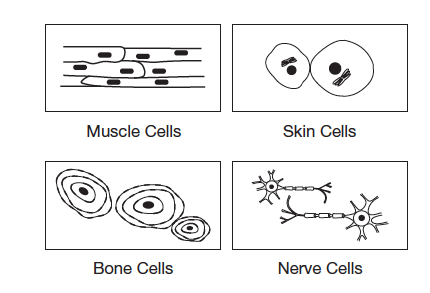

2. Several different types of cells are shown below.

Which two types of cells are most similar in shape?

skin cells and bone cellsmuscle cells and skin cellsnerve cells and skin cellsbone cells and nerve cells

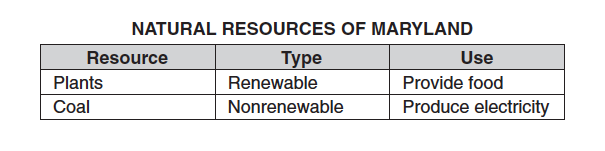

3. Use the information below to answer the question. Students studied the natural resources of Maryland. The students recorded their findings in the data table below.

What is a harmful result of burning coal?

evaporationcondensationair pollutionsoil erosion

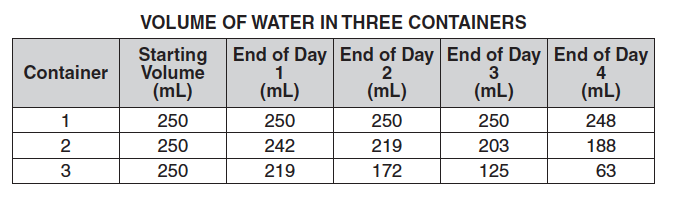

4. Use the information below to answer the question. Students placed 250 milliliters of water in three identical containers. Container 1 had a tightly sealed lid and was placed on a classroom counter. Container 2 had no lid and was placed on a classroom table. Container 3 had no lid and was placed on a table outside in the shade. The students measured the amount of water in each container at the end of each day for four days. Their results are shown in the data table below.

Which process changes evaporated water into liquid water?

erosionprecipitationcondensationcompetition

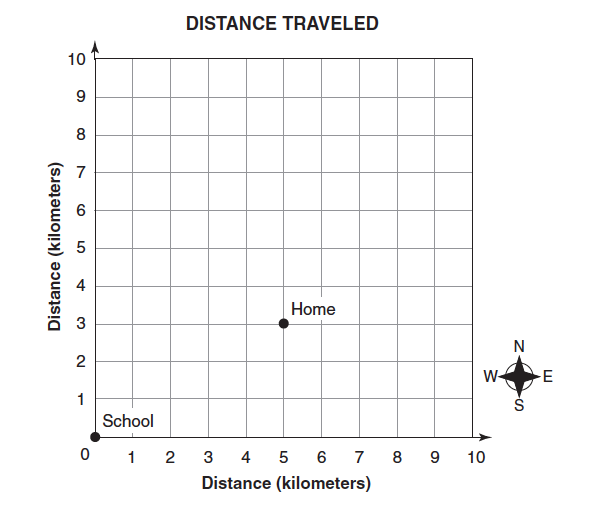

5. A student travels in a car from home to school. The locations of the student’s home and the school are shown on the map below.

How far and in what direction does the student travel from home to school?

5 kilometers north and 3 kilometers east3 kilometers south and 5 kilometers west3 kilometers north and 7 kilometers east5 kilometers south and 7 kilometers west

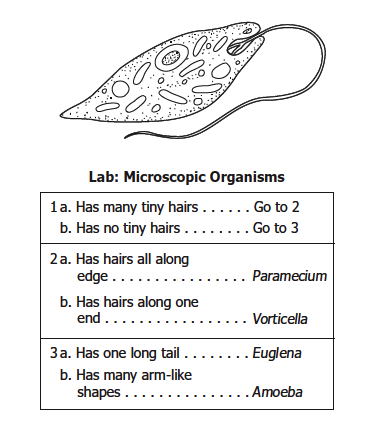

6. Given this picture:

Lee uses a microscope during science class. He sees this organism in a drop of water. Which organism did he most likely see?

ParameciumVorticellaAmoebaEuglena

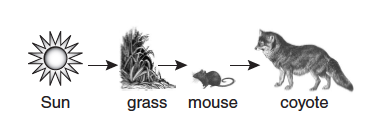

7. The diagram below shows a simple food chain.

Which of the following animals might compete with the coyote in this food chain?

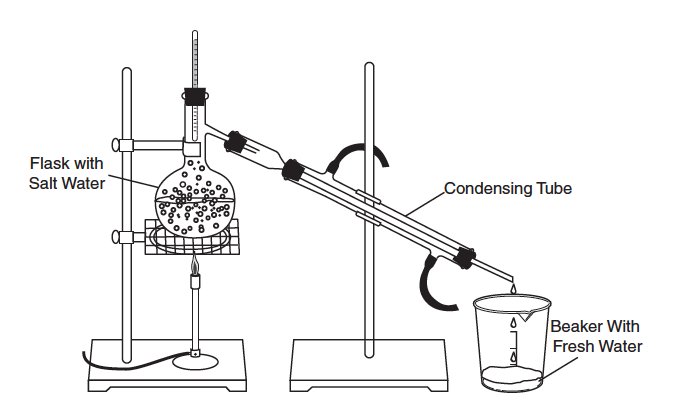

8. Use the information below to answer the question. Seawater contains a number of different salts. The water can be separated by a process called distillation. A simple distillation setup is shown below.

The water in the flask evaporates. Water vapor (gas) rises, leaving the salt in the flask. The water vapor is cooled in the condensing tube and drips into the beaker. Why does salt remain in the flask?

Salt becomes water after it is heated.Salt is too heavy to become a vapor (gas).Salt is attracted to heat.Salt does not evaporate.

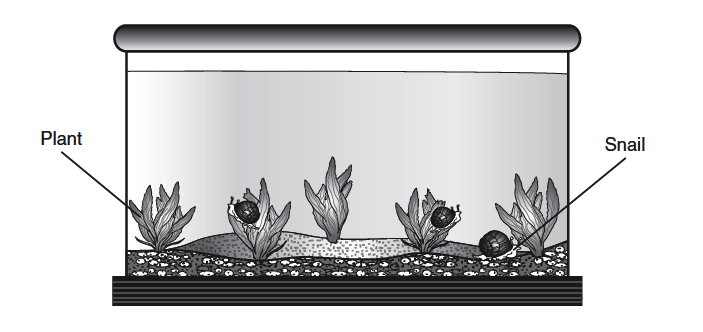

9. Given this picture:

At the beginning of the week there were three snails and 12 live plants in an aquarium. The picture above shows the aquarium at the end of the week. Which of the following most likely happened during the week?

The plants grew at a faster rate than the snails.The snails ate many of the plants.The snails reproduced faster than the plants.The number of plants and snails both decreased.

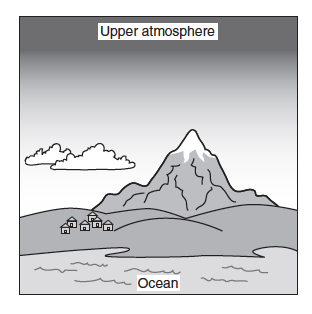

10. The diagram below shows a landscape.

Where in the diagram would the air pressure be the greatest?

at the bottom of the cloudsat the beachon top of the mountainabove Earth’s atmosphere

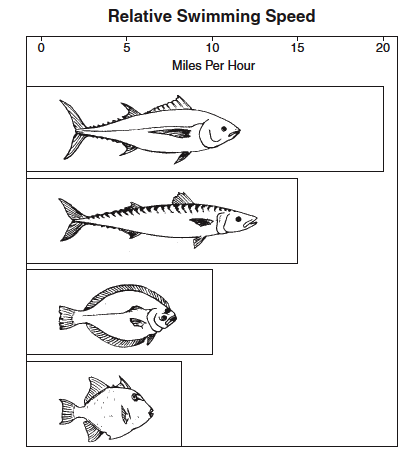

11. Given this picture:

Which of these is probably the slowest fish?

12. Given this picture:

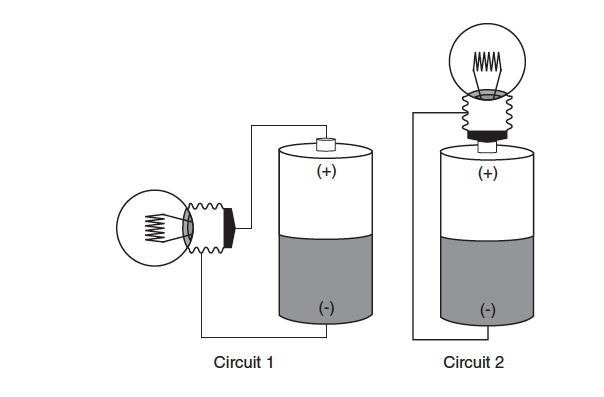

Which statement best describes the circuits in the diagram?

Only the light bulb in Circuit 2 is lit.Neither light bulb is lit.Only the light bulb in Circuit 1 is lit.Both light bulbs are lit.

13. Given this picture:

Some students measured the growth of four tomato plants after one month. The plants grew in identical containers with different soils. The Students made a table of their data as shown above. What is the best title for the second column in their table?

Plant Height (cm)Days of GrowthNumber of PlantsContainer Size (mL)

14. Use the information and diagram below to answer the question. A student built a model of Earth and the moon. The student used the items listed below to make the model. • flashlight (the sun) • small foam ball (the moon) • large foam ball with a wooden rod through center (Earth with axis) • rubber band placed around the middle of the large foam ball (the equator of Earth) The student used the model to show the different positions of Earth and the moon as they move around the sun. The student recorded their observations and numbered the positions of Earth on the drawing below.

One rotation of Earth on its axis takes

1 year1 week1 month1 day

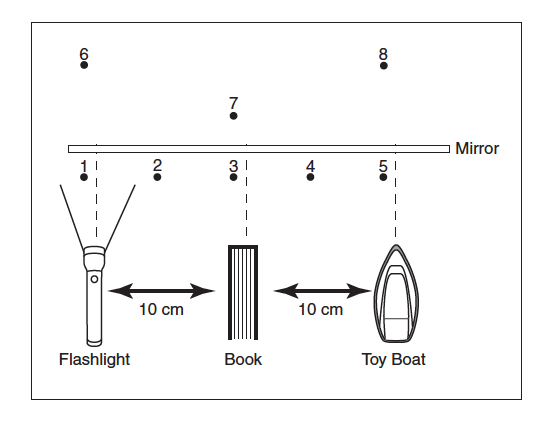

15. Use the information below to answer the question. A flashlight and a toy boat are placed on a table in front of a plane mirror. Each object is the same distance from the mirror. A large book is placed halfway between the flashlight and the boat. The diagram below shows a top view of the objects on the table.

The book is 5.0 centimeters wide. The reflection of the book in the plane mirror shows that the width of the book is

1.0 centimeter2.5 centimeters5.0 centimeters10.0 centimeters

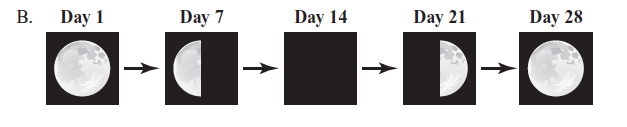

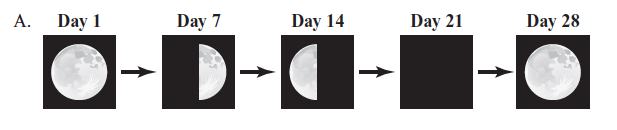

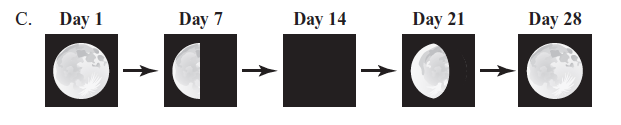

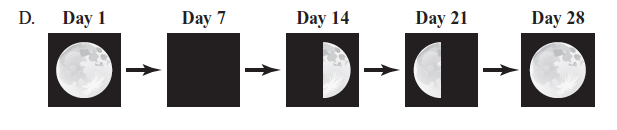

16. Which of the following sets of pictures shows the phases of the Moon in the order they would be observed?

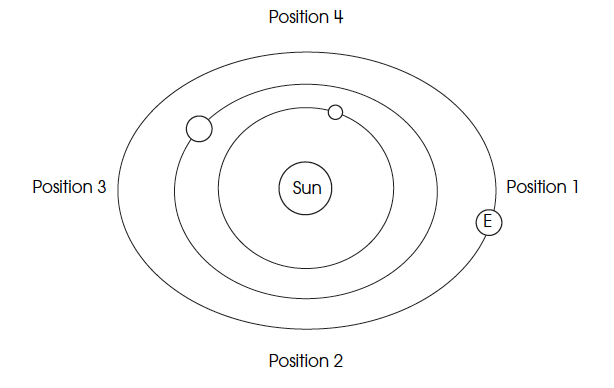

17. The diagram shows the position of Earth (E) now.

Where will Earth be in six months?

near position 3near position 2near position 4near position 1

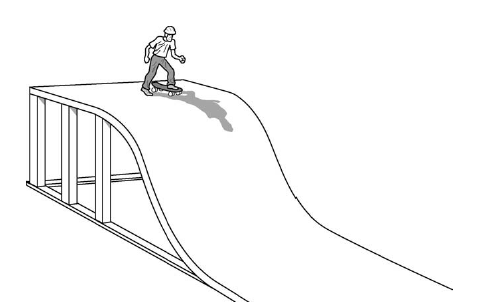

18. Use the following information to answer the question.

Chris has joined a skateboarding team and purchased a new skateboard. The team captain tells Chris that being a good skateboarder means understanding and using physical science. Use your knowledge of physical science to answer the following questions.

Chris pushes off the ramp platform with his right foot. He quickly places his foot back on the board and rides down the ramp. What force acts between Chris’s foot and the platform as he pushes off?

gravitymagnetic attractionfrictionconductivity

19. Given this picture:

Gallium is a metal that melts at about 30°C. If a person B whose body temperature is 37°C held a cube of gallium for five minutes Given this picture:

Which line graph best shows the data in the table? "

20. Given this picture:

A student plays the cymbals in a band. When the cymbals are hit together a loud sound is produced. The force of the cymbals hitting each other produces sound because —

metal is magneticair vibratesenergy is absorbedmetal conducts heat

21. A student added a small ball to a graduated cylinder containing 10 milliliters of water.

What is the volume of the ball?

10 mL15 mL20 mL5 mL

22. The table below shows the rise and fall of the deer population in Arizona between 1905 and 1935.

What most likely caused the deer population to change between 1915 and 1920?

removal of predatorsmore deer being huntedvery little rainfallmany deer starving

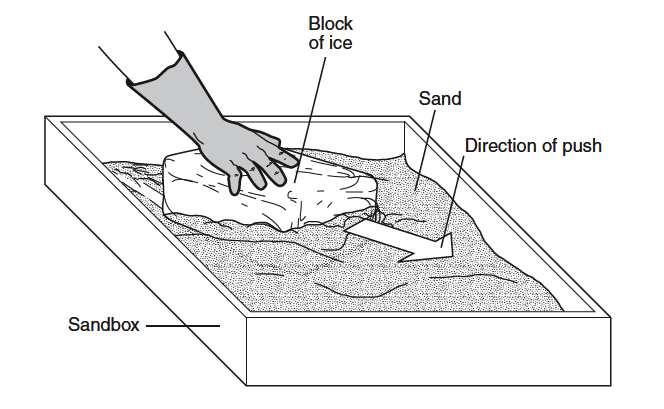

23. Given this picture:

Which of the following features is best modeled in the diagram above?

IslandGlacierRiverVolcano

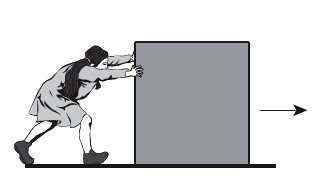

24. Given this picture:

A person pushes a box as shown. What is the push most likely to change?

The position of the boxThe size of the boxThe color of the boxThe mass of the box

25. Mr. Washington mixed iron filings with sand. Then he asked his students to separate the iron filings from the sand. Which of the following is the best tool to use to separate the iron filings from the sand?
